Machine vision cameras from Allied Vision feature Sony image sensors

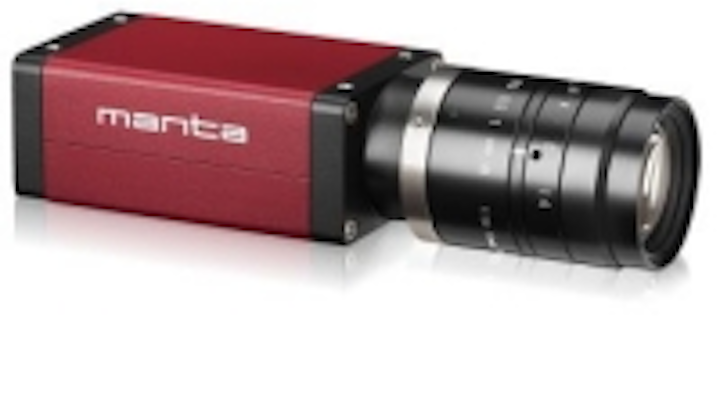

Allied Vision has introduced two new cameras in its Manta series: The Manta G-235 and the Manta G-505, both of which feature image sensors from Sony and GigE interface.

Content Dam Vsd En Articles 2014 12 Machine Vision Cameras From Allied Vision Feature Sony Image Sensors Leftcolumn Article Thumbnailimage File

Allied Vision has introduced two new cameras in its Manta series: The Manta G-235 and the Manta G-505, both of which feature image sensors from Sony and GigE interface. The Manta G-235 features Sony’s new Sony IMX174, a 1/1.2" 2.3 MPixel global shutter CMOS image sensor with a 5.86 µm pixel size that achieves a frame rate of 50.7 fps at full resolution. The Manta G-235 also delivers image data at 12-bit depth and is available in board level and angled head versions.

Featuring a 5 MPixel 2/3" Sony ICX625 image sensor with a 3.45 µm pixel size, the Manta G-505 camera is able to achieve a frame rate of 15 fps at full resolution. In addition, the Manta G-505 delivers image data at 14-bit depth. Both models are equipped with Allied Vision’s VIMBA software development kit.

To Learn More:

Contact:Allied Vision
Headquarters: Stadtroda, Germany
Product:
Manta GigE Vision cameras
Key Features:
2.3 MPixel Sony IMX174 CMOS sensor, 50.7 fps (Manta G-235), 5 MPixel Sony ICX625 CCD sensor, 15 fps (Manta G-505).

What Allied Vision says:
View more information on the Manta G-235.
View more information on the Manta G-505.
