PixeLINK expands USB 3.0 camera family with launch of Titan CMOS camera

PixeLINK has announced the release of its Titan PL-D7715 USB 3.0 camera, the first in a new line of CMOS cameras, which adds to the company’s existing USB 3.0 cameras.

Apr 29th, 2014
Content Dam Vsd En Articles 2014 04 Pixelink Expands Usb 3 0 Camera Family With Launch Of Titan Cmos Camera Leftcolumn Article Thumbnailimage File

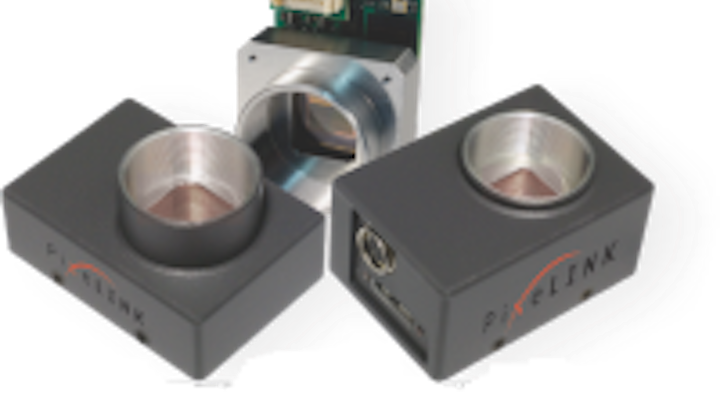

PixeLINK has announced the release of its Titan PL-D7715 USB 3.0 camera, the first in a new line of CMOS cameras, which adds to the company’s existing USB 3.0 cameras. The Titan PL-D7715 USB 3.0 camera features a 1/2.3” Aptina CMOS rolling shutter image sensor with a 1.4 µm x 1.4 µm pixel size that achieves a frame rate of 13.7 fps at full 15 MPixel resolution. Users can choose 8-bit or 12-bit digitization and an external hardware trigger and two general-purpose outputs provide users with the flexibility to synchronize the camera with their processes and illumination. In addition, the camera includes a number real-time image pre-processing functions, including auto and manual exposure, programmable lookup tables, auto and manual white balance, and binning. Titan PL-D7715 cameras are suitable for use in document scanning, flat panel display and PCB inspection, aerial photography, and general machine vision applications.

To Learn More:

Contact:PixeLINK
Headquarters
: Ottawa, ON, Canada
Product:
Titan PL-D7715 USB 3.0 camera
Key Features:
1/2.3” Aptina CMOS rolling shutter image sensor with a 1.4 µm x 1.4 µm pixel size, 13.7 fps at full resolution, USB 3.0 interface, image pre-processing pipeline.

What PixeLINK says:
View more information on the Titan USB 3.0 camera.
