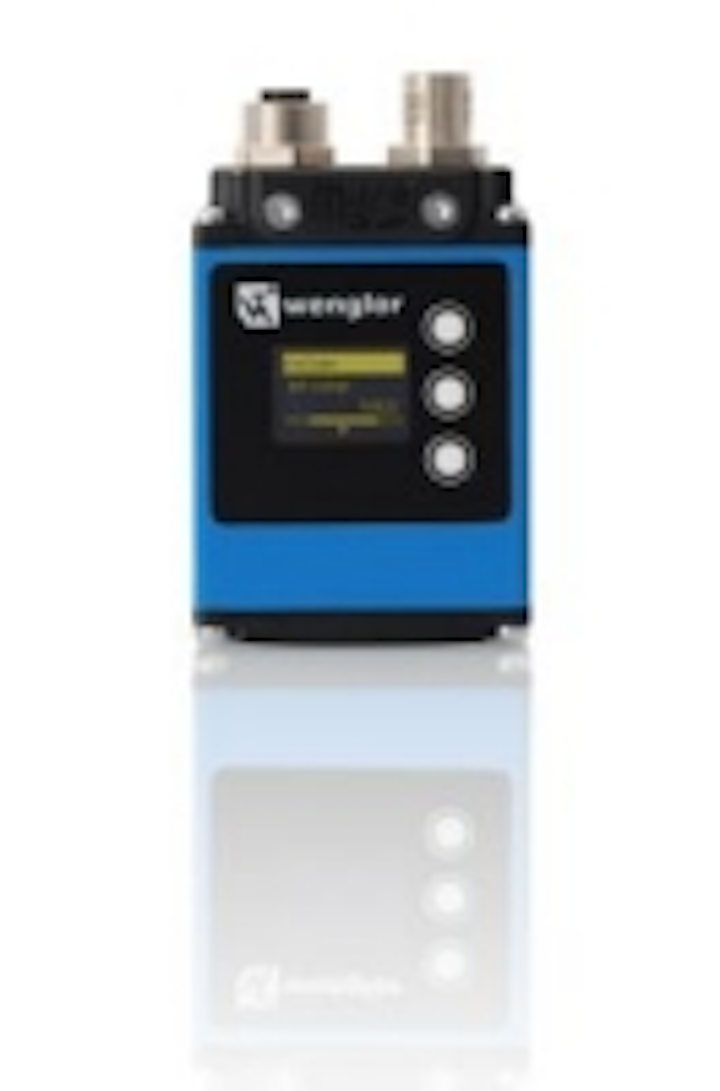

wenglor weQube smart camera combines image processing and barcode scanning

weQube smart cameras feature MultiCore technology, which connects the camera’s processors to software packages that enable the camera to function as a vision sensor, smart camera, and 1D/2D barcode scanner.

Content Dam Vsd En Articles 2014 02 Wenglor Weqube Smart Camera Combines Image Processing And Barcode Scanning Leftcolumn Article Thumbnailimage File

weQube smart cameras feature MultiCore technology, which connects the camera’s processors to software packages that enable the camera to function as a vision sensor, smart camera, and 1D/2D barcode scanner. The 736 x 480 pixel camera features color or monochrome CMOS image sensors with a 15 Hz frame rate, 12 LED lights (including infrared, if needed), autofocus, 3D tracking, as well as a number of communication interfaces: Ethernet, PROFINET, RS-232, and FTP server. In addition, the camera features compact IP67 aluminum housing, replaceable screening grid with integrated polarization filter, and a Micro SD card. weQube smart cameras are suitable for use in 1D/2D barcode reading, part/object inspection, and dimensional accuracy check applications.

To Learn More:

Contact:wenglor
Headquarters: Tettnang, Germany
Product: weQube smart cameras
Key Features: 736 x 480 pixels, CMOS image sensor, MultiCore technology (Enables camera to work as vision sensor, smart camera, and barcode reader), LED lights, multiple communication interfaces.

What wenglor says:
View more information on weQube smart cameras.
