Toshiba Teli's latest 'clever' camera uses PoCL-lite interface

Toshiba Teli's Clever Dragon Model CSCLV90BC3 Camera Link camera features a durable 20 x 20 x 20 mm cube body that enables design of high-speed machine vision systems for parts inspection and robotics applications.

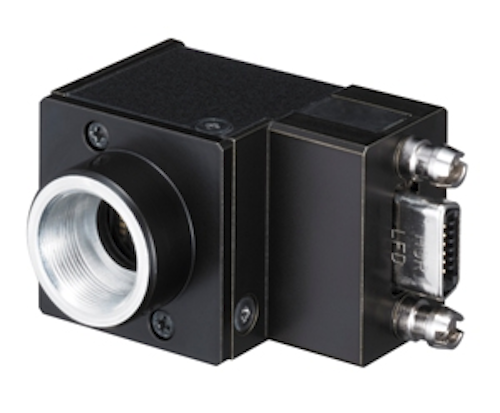

Toshiba Teli Clever Dragon CSCLV90BC3 PoCL-lite camera
Toshiba Teli Clever Dragon CSCLV90BC3 PoCL-lite camera

The Clever Dragon Model CSCLV90BC3 Camera Link camera features a durable 20 x 20 x 20 mm cube body that enables design of high-speed machine vision systems for parts inspection and robotics applications. The monochrome CCD camera can achieve 90 frames/s at VGA (640 x 480-pixel) resolution. Programmable partial scan functionality allows for faster frame rates depending on the number of lines scanned. PoCL-lite employs a single cable for both camera power and signal connections.
Toshiba Teli
Tokyo, Japan

-- Posted by Vision Systems Design

View More Vision+Automation Products

Locate a vendor or system integrator in our Online Buyer's Guide

---
NEW PRODUCT PRESS RELEASE

Clever Dragon 20mm CUBE

Ultra Compact VGA CCD Monochrome Machine Vision Camera with PoCL-lite interface

Key Features
Ultra Compact and Light Body: Toshiba Teli Clever Dragon (Model: CSCLV90BC3) features a 20x20x20 mm cube body with a great durability. It is the optimal platform for integrators and OEMs designing systems for high-speed machine vision parts inspection and robotics application.

High Speed Reading Out: The CSCLV90BC3 can achieve 90 frame per second at VGA (640x480) resolution. Also Programmable Partial Scan functionality is incorporated, so it enables to make the frame speed faster depending on the number of scan line.

PoCL-lite interface: Based on PoCL standard, the camera are compliant of PoCL-lite (8bit/10 bit selectable) interface. Thanks to the wide bandwidth (0.85Gbps) and the small connector (14pin), a smaller & faster camera is realized. A single cable provides both camera power and signal connections. The framegrabber companies such as ADLINK, SiliconSoftware , Euresys, Bitflow has already qualified the CSCLV90BC3.

Cable Outlet Variation:
In order to suppress the space factor the CSCLV90BC3 camera can provide choices of the cable directions. (Left, Right, Top, Bottom, Rear)

SOURCE: Toshiba Teli
