Omron's FQ-M vision sensor processes 5000 pieces/min

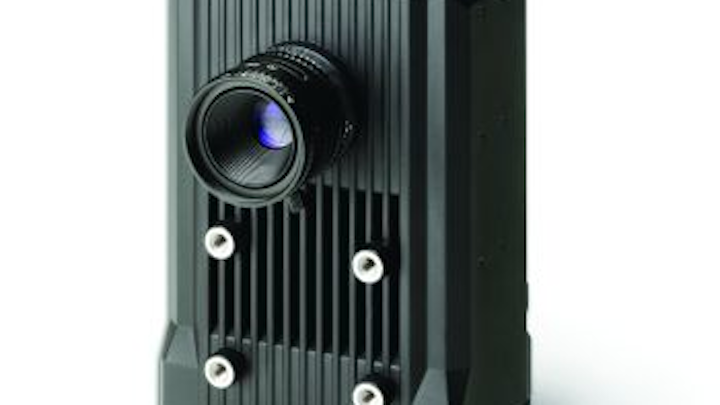

Omron's FQ-M vision sensor integrates a camera, image-processing functionality, and communications into a device designed for robotic pick-and-place applications.
The FQ-M vision sensor integrates a camera, image-processing functionality, and communications into a device designed for robotic pick-and-place applications, processing 5000 pieces/min, with full 360° rotation. Ethernet and EtherCAT are embedded for ease of integration into any factory automation environment; an incremental encoder is included for easy tracking and calibration. The sensor is configured using Sysmac Studio software, and a palm-sized TouchFinder console supports local monitoring and access to functions and settings.
Omron Industrial Automation
Schaumburg, IL, USA
-- Posted by Vision Systems Design
NEW PRODUCT PRESS RELEASE
Omron Introduces a Smart Camera to Guide Pick-and-Place Robots
FQ-M Vision Sensors Offer Built-in Motion Tracking and EtherCAT/Ethernet
SCHAUMBURG, IL – Omron Industrial Automation (www.Omron247.com) has introduced a vision sensor developed specifically to meet the needs of pick-and-place applications. Highly compact, and with a processing speed of 5000 pieces per minute even with full 360 degree rotation, the new FQ-M vision sensor comes with Ethernet and EtherCAT embedded for ease of integration into any environment, and includes an incremental encoder for easy tracking and calibration. The FQ-M is easily configured for guidance of dynamic pick-and-place robots using Omron’s Sysmac Studio software, and is complemented by the palm-sized TouchFinder console for local monitoring and access to functions and settings.
The FQ-M is a smart camera that meets all the needs of demanding object recognition and tracking applications, combining a camera, image processing functionality and flexible communications options into a single compact package. The vision sensor ensures stable and robust shape-based detection even under changeable environmental conditions, and has been designed for the inspection of a wide range of objects.
The FQ-M vision sensor is the latest addition to Omron’s Sysmac automation platform, which tightly integrates core automation components with a common network and a single programming and configuration interface. It communicates with other devices either via EtherCAT – Omron’s network of choice for the Sysmac automation platform – or via standard Ethernet, or a combination of the two. For example, the FQ-M might be networked to an Omron NJ series machine controller for object tracking, and to the robot itself and the TouchFinder console over standard Ethernet.
Object detection is based on a newly developed contour-based search algorithm which ensures the highest reliability, regardless of changing lighting conditions, reflection and object inclination. The algorithm can even cope with overlapped or partially hidden objects. With this high performance algorithm and the high speed image processing capability, the FQ-M can detect up to 32 pieces at once with absolute stability, and 5000 pieces per minute. The incremental encoder interface simplifies initial calibration of the system, and enables on-the-fly tracking for tightly synchronized control. The FQ-M is able to output position coordinates and the corresponding encoder values, and is able to manage the object queue so that no object’s coordinates are duplicated.
Set-up of the FQ-M vision sensor is performed through the Vision Editor of the Sysmac Studio software, which provides intuitive, icon-driven configuration that makes it easy to achieve the optimum vision setting. The Vision Editor also provides comprehensive trending and logging functions. For easy integration into robot pick-and-place systems, the communication wizard makes it easy to configure any robot protocol either as a server or as a client without complex programming.
For ease of monitoring and for access to parameters and settings, the TouchFinder console provides a 3.5-inch TFT color touch screen. Users can view images in real time, zoom in, zoom out and freeze images for closer manual inspection. The TouchFinder can also show a variety of measurements, including the last result, the last no-go result, a trend monitor and histograms. It can also log the data from measurement results and measured images. Users navigate through the various functions via the intuitive touch screen interface.
Measuring just 110x75x50mm, the FQ-M vision sensor is compact enough to make mounting simple in even the most challenging automation environments. For ultimate flexibility, the FQ-M provides a standard C-Mount lens attachment, enabling users to select from a wide range of compatible lenses for optimized system performance.
The FQ-M vision sensor extends the range of products in the Sysmac Automation Platform, which includes the NJ-series machine controller, Accurax G5 servo system (servo motors and servo drives), MX2 inverter, and SmartSlice distributed I/O.
