Automation Manager software from Soft Automation enables drag-and-drop handling of vision and control systems
Automation Manager is a drag-and-drop environment from Soft Automation that enables a single program to incorporate elements of machine vision, gauging, motion control, control logic, and other system functions.
Automation Manager is a drag-and-drop environment that enables a single program to incorporate elements of machine vision, gauging, motion control, control logic, and other system functions. Multiple hardware sources can be incorporated and all controlled from one software package. The image-processing engine offers functions such as calibration, color, edge, correlation, blob, unwrap, and others, as well as an image viewer. 2-D and 3-D calibration modules are included for cameras, lasers, and stereo vision systems. The software supports hardware such as thermal cameras, laser scanners, range sensors, and analog devices.
Milford, MI, USA
-- Posted by Vision Systems Design
NEW PRODUCT PRESS RELEASE
Machine Vision and Automation Software
Soft Automation releases version 7 of Automation Manager
Automation Manager is a drag and drop environment so a single program can incorporate elements of machine vision, gauging, motion control, control logic etc. Multiple hardware sources can be incorporated and all controlled from one software package.
Companies that have adopted Automation Manager this year include
-Large Phone manufacturer for visual machine guided part insertion using a camera and a 4 axis stage
-Scrap yard sorting scrap using a color line scan camera for detecting copper and PCB boards
-Glass manufacturer for detecting defect in glass at approx 3 parts per second
-Bolt manufacture using multiple camera to verify and measure threads. Common tolerance files in this case in csv format are loaded across multiple systems
[Additional information from the web site]
Completely Configurable in a drag drop environment
we claim: "The Worlds most configurable software"
Image Processing Engine
- Diverse range of image procesing (calibration, color, edge, correlation, blob, unwrap....) including image viewer (some tools patented)
3D Geometry Engine
- plane, 3D line, 3D Point cloud viewer...
- SPC, GRR, export to xml and csv
- maths, jump , loops, aborts....
- create xml reports, log csv data
- easy to create workflow integrates with control logic
- control different motor controller and different axis configuration, xyz, xyy etc
- Write pseudo ladder logic, view the logic as it runs
Communications / Protocols
- serial (event driven), http, ftp, email pop (client), ethernet IP (client and server),modbus (client and server)..
- Audio, movies, dvd, recording

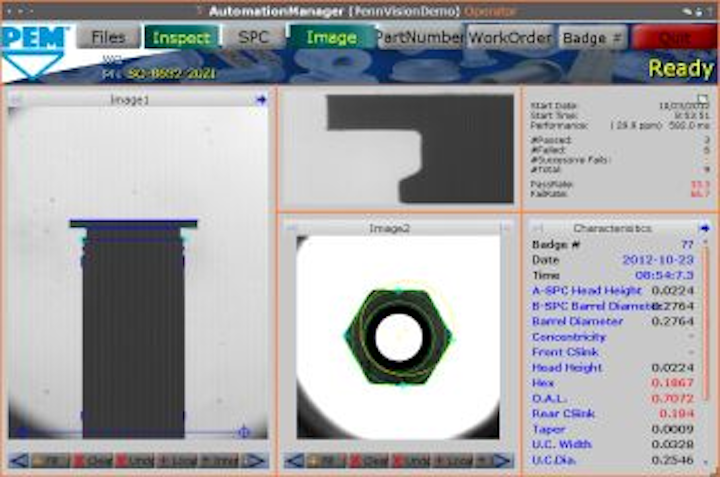

Slide / Interface Builder
- build a sophisticated interactive HMI in minutes
- all interface on the left are built with the same software, just by drag and drop
- 2D and 3D calibrations modules for camera, lasers, and stereo vision
- support themal camera, laser scanner, range sensors, Analogue...
- csv, eml,images,movies, text,
Parametric, Parametric, Parametric
- assign one tool's outputs to another tool's inputs
Creative Lifestyles aka Soft Automation
2805 Harmony Lane, Milford, Michigan, 48380, USA
SOURCE: Soft Automation
