Andor's upgraded sCMOS camera has 30,000:1 dynamic range

June 8, 2012

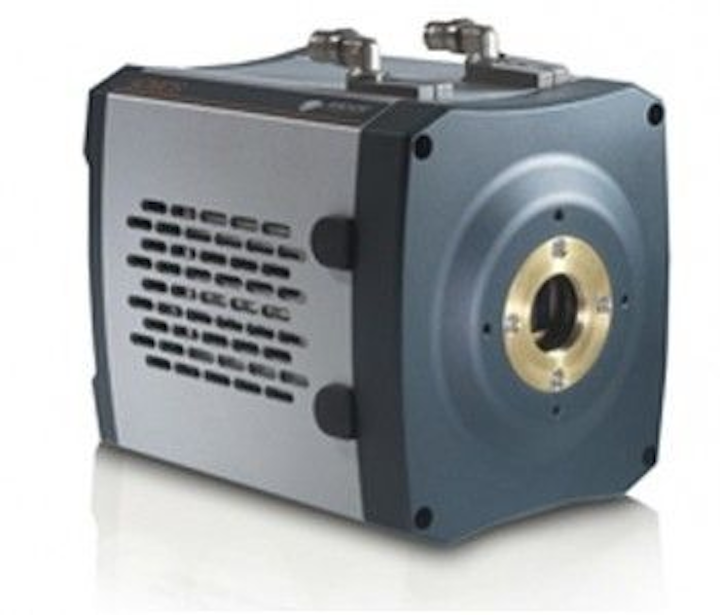

The next-generation scientific CMOS (sCMOS) Neo camera from Andor Technology has been enhanced with a 5.5-Mpixel sensor.

The next-generation scientific CMOS (sCMOS) Neo camera has been enhanced with a 5.5-Mpixel sensor that features 6.5-µm pixels to achieve a 1 electron read noise at 30 frames/sec. Dual amplifier architecture facilitates dynamic range of 30,000:1. The camera delivers deep vacuum cooling down to -40 degrees Celsius to maintain low noise and a minimal pixel blemish specification across all exposure conditions. FPGA-based processing is coupled with a 4-Gbyte on-head image memory, which enables the camera to acquire extended kinetic bursts at frame rates faster than variable hard drive write speeds.
Andor Technology
Belfast, Northern Ireland

-- Posted by Vision Systems Design

View More Vision+Automation Products

Locate a vendor or system integrator in our Online Buyer's Guide

---
NEW PRODUCT PRESS RELEASE

Andor Technology announce performance enhancements to Neo sCMOS ‘Interline Displacement’ Technology

Belfast, Northern Ireland – Andor Technology plc (Andor), a world leader in scientific imaging and spectroscopy solutions, today announced several performance enhancements to the industry leading Neo camera, based on next-generation scientific CMOS (sCMOS) technology. Key enhancements include faster sustained frame rates, even better image quality, hardware pixel binning, flexible region of interest capability (with single pixel granularity), accurate timestamp and improved global (snapshot) exposure performance.

Neo’s 5.5 megapixel sCMOS sensor, with 6.5 µm pixel size, achieves an unprecedented 1 electron read noise at 30 fps, the innovative dual amplifier architecture facilitating a wide dynamic range of 30,000:1. Neo exclusively delivers deep vacuum cooling down to -40 0C, critical to maintain the low noise advantage and a minimal pixel blemish specification across all exposure conditions. The camera offers comprehensive FPGA intelligence for superior image quality and quantitative stability, coupled with a 4GB on-head image memory which renders it unique in its ability to acquire extended kinetic bursts at frame rates which are faster than the notoriously variable hard drive write speeds, overcoming the need for prohibitively expensive and complex PC solutions.

Dr Colin Coates, Andor’s Imaging Product Manager, said; "Neo is rapidly gaining recognition as the new gold standard ‘workhorse’ laboratory camera, with particular suitability for live cell imaging, and is proving a compelling alternative to interline CCDs. While sCMOS sensors do not possess the raw sensitivity of EMCCD cameras for very low light applications, they do dramatically outperform interline across several key parameters and, importantly, are priced in the same ballpark. Our 5.5 megapixel sensor is unique in offering both rolling and snapshot exposure modes for greater application flexibility, the latter an important inclusion as it is directly analogous to the snapshot exposure mechanism of interline or frame transfer CCD cameras in allowing ‘freeze frame’ capture of fast moving or changing objects. This latest set of performance enhancements, coupled with Neo’s steadily expanding software compatibility, help make for a cleaner upgrade decision.”

Andor enables its customers to break new ground by performing light measurements previously considered impossible. With a portfolio spanning high-performance scientific digital cameras, spectrographs, and confocal microscopy systems, Andor is a world leader in scientific imaging, spectroscopy solutions and microscopy systems. More information about Andor Technology PLC (LSE: AND) is available at www.andor.com.

For more information, please contact Dr. Colin Coates on
+44 (0)28 9023 7126, email [email protected].

SOURCE: Andor Technology
