Toshiba Machine robots have z-axis rotation of 360 degrees

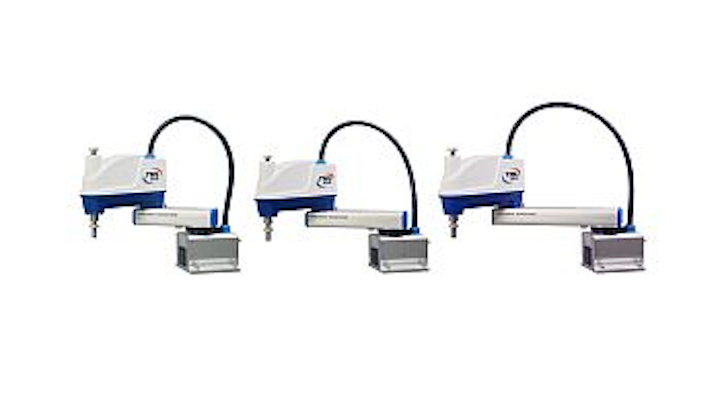

THL Series SCARA robots from Toshiba Machine Co. of America include the THL500, THL600, and THL700 with arm lengths of 500, 600, and 700 mm, respectively.
THL Series SCARA robots include the THL500, THL600, and THL700 with arm lengths of 500, 600, and 700 mm, respectively. Each THL offers a payload of 10 kg. Cycle times (with 2-kg load) are 0.45 s for the THL500 and THL600, and 0.50 s for the THL700. All THL robots feature a working envelope of four axes, with a z-axis rotation of 360º. Maximum speeds range from 6.3 m/s to 7.9 m/s overall. The TSL 3000 Controller for the THL Series is USB compatible as standard, with a Field Bus option. Storage capacity totals are approximately 6400 point + 12,800 steps. The programming language is SCOL (similar to BASIC).
Toshiba Machine Co. America,
Control Systems Division
Elk Grove Village, IL, USA
-- Posted by Vision Systems Design
NEW PRODUCT PRESS RELEASE
TOSHIBA MACHINE INTRODUCES AFFORDABLE AND LIGHTWEIGHT THL SCARA ROBOT LINE
Elk Grove Village, IL -- Toshiba Machine’s latest line of low-cost and lightweight SCARA Robots, the THL Series, is ideal for price-conscious end-users, and system integrators looking to incorporate automation. The THL Series consists of three SCARA robot models, each uniquely offered at the same price point.
To achieve cost savings, the THL Series is configured with a lightweight die cast aluminum arm, as well as less complex, easy-to-maintain gearboxes and motors. This design also results in a robot up to 50% lighter than existing Toshiba Machine models. A lighter robot can mean further cost savings for system integrators, as the THL Series requires minimal supporting and vibration-suppression elements.
Another benefit to the lightweight construction of this series is reduced energy-consumption. The THL Series consumes up to 50% less power than conventional robots, contributing to improved overall efficiency of the entire system.
Toshiba Machine, a world leader in automation, has developed the THL Series based on extensive global research. A detailed analysis of industry trends indicated a demand for low-cost robotic systems. Successfully launched in November 2011 during the International Robot Exhibition in Tokyo, Japan, Toshiba Machine has begun marketing the THL Series throughout North and South America.
THL Series SCARA Robots include the THL500, THL600 and THL700 with arm lengths of 500mm, 600mm and 700mm respectively. Each THL offers a payload of 10kg. Cycle times (with 2 kg load) are .45s for the THL500 and THL600, and .50s for the THL700. All THL Robots feature a working envelope of 4 axes, with a Z-axis rotation of 360º. Maximum speeds range from 6.3m/s to 7.9m/s overall.
Toshiba Machine’s TSL 3000 Controller was developed exclusively for the THL Series. It includes USB compatibility as standard, while Field Bus is available as an option. Storage capacity totals are approximately 6400 point + 12800 steps. The programming language is SCOL (similar to BASIC).
For pricing information and further details, contact Toshiba Machine Co., America, Control Systems Division, 755 Greenleaf Avenue, Elk Grove Village, IL 60007, Phone: (847) 709-7308, Fax: (847) 709-7358, E-mail: firstname.lastname@example.org.
SOURCE: Toshiba Machine Co. America
