Aerotech APT Series pan and tilt systems meet needs of security, defense, and surveillance markets

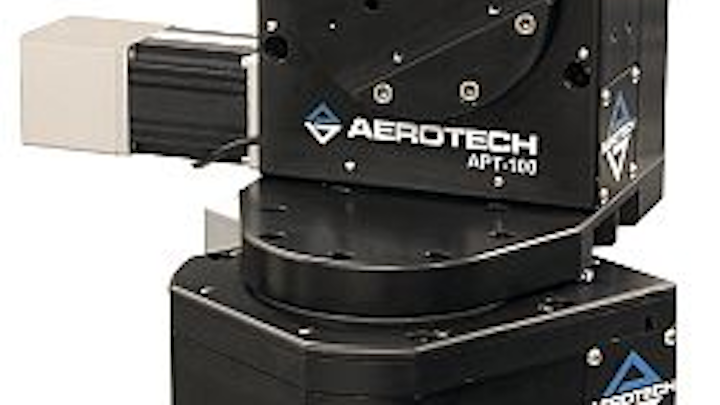

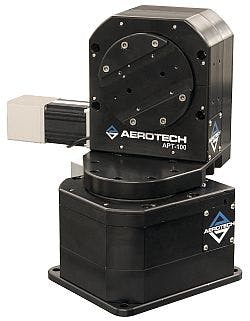

Aerotech Pan and Tilt (APT) systems are designed for the most demanding positioning requirements.

Content Dam Etc Medialib Platform 7 Vision Systems Design Articles Online Exclusive Articles 2010 Global 44185

PRESS RELEASE

Aerotech (Pittsburgh, PA, USA) Pan and Tilt (APT) systems are designed for the most demanding positioning requirements. Building on Aerotech’s experience in building AZ/EL positioning systems, direct-drive rotary stages, and motion simulators for the military, government agencies, academic institutions, and private industry, the APT series expands the product line to meet the needs of security, defense, and surveillance markets worldwide.

The APT series high-precision pan and tilt mounts combine proven high-precision mechanics with industry-leading control technology in a single, unified package. The drive mechanism includes a unique gear preloading feature that self-adjusts for the effects of wear and temperature variation, resulting in no degradation in positioning performance over the life of the product. A built-in Aerotech Ensemble controller responds to motion commands via an Ethernet connection, or it can be programmed to operate in a standalone configuration.

APT performance specifications include continuous 360° pan with a maximum speed of 180°/s, tilt range of ±95° with a maximum speed of 180°/s, position resolution of 7.6 arc seconds, and position accuracy of 120 arc seconds. The 35-kg payload allows mounting of a variety of different cameras.

An integrated slip-ring carries camera connections to the base of the unit. Continuous pan rotation with limited-travel tilt is standard. Options are available to meet a wide range of camera mounting, signal feed-through, and termination requirements. An inertial stabilization option is available that integrates gyroscopes and inertial sensors to actively maintain the line-of-sight when operated on aircraft, ships, and land vehicles.

For further information, please contact Steve McLane at 412-967-6854 (direct), or via e-mail at smclane@aerotech.com. In addition, the APT Series data sheet is available at http://www.aerotech.com/products/optmnts/apt.html.

-- Posted byVision Systems Design
