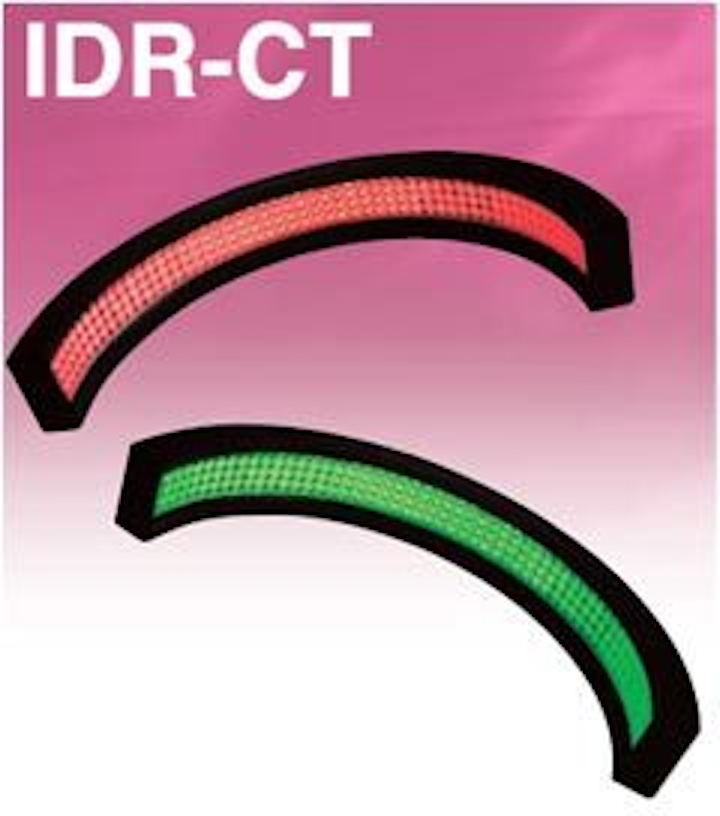

The new IDR-CT Series Arc Lights from LDDLIGHT.com (Milford, NH, USA) are designed for applications requiring an open arch of illumination. Unique within our Area Light Family, the IDR-CT’s semi-circle shape delivers light that partially surrounds an object, providing illumination through a 180° arch. This lighting technique supports inspections on both cylindrical surfaces and on objects requiring illumination of more than 1 side.
Like other Area Lights, the IDR-CT can easily be positioned to provide either bright field or dark field lighting. Due to their open arch design, IDR-CT Arc Lights can be mounted in a fixed position while allowing objects to easily be conveyed through their open 180° arch.
Typical applications for the IDR-CT are found in canning and bottling (e.g. print inspection on aluminum cans, debris in screw top bottle threads), machine parts (e.g. pistons and cylinders) and cosmetics (e.g. print inspection on lipstick and mascara).
Available with an outer diameter of 200mm and inner diameter of 170mm, the IDR-CT is available with red, white, blue or green LEDs. Additional wavelengths or sizes may be custom ordered.
To see all available IDR-CT Arc Light models and pricing, visit http://www.lddlight.com and enter “IDR-CT” into the site’s Search Box.
LDD can be reached at firstname.lastname@example.org, 603-732-0057 or FAX to 603-732-0058.
-- Posted by Vision Systems Design
