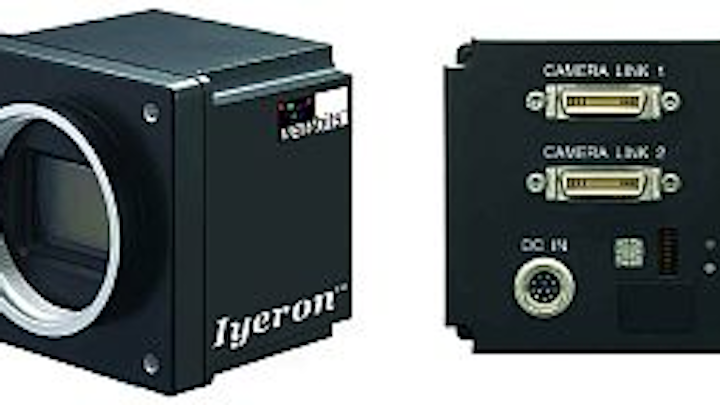

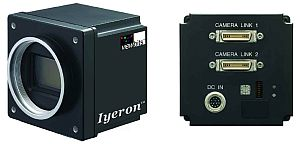

    FEBRUARY 5, 2010--The Iyeron, a 12-Mpixel machine-vision camera, is shock-resistant and features a 1.9-in. CMOS monochrome progressive-scan sensor.
    Feb. 5, 2010
    4 min read
    FEBRUARY 5, 2010--The Iyeron, a 12-Mpixel machine-vision camera, is shock-resistant and features a 1.9-in. CMOS monochrome progressive-scan sensor. It offers HXGA 4096 (H) x 3072 (V) pixel resolution at a full speed of 25 frames/s; this resolution is competitive with linescan camera offerings. The faster frame speed is achieved via the programmable window of interest (WOI) partial scanning mode. WOI can be programmed to display up to 28 square windows within one image and then allow the user to select certain windows to be read out. A Camera Link interface simplifies installation in new and existing systems. Viewbits
    San Diego, CA, USA
    www.viewbits.com-- Posted by Carrie Meadows, Vision Systems DesignFind more information on Camera Link Cameras

    ------

    PRESS RELEASE

    Viewbits Introduces 12 Megapixel, 25 Frames per Second, Machine Vision Camera for Inspection, Robotics, and Medical or Scientific Imaging

    Compact Iyeron CMOS Monochrome Camera with Camera Link Captures Full Frame 4096 x 3072 Resolution Images at Usable Rates That Compete Strongly with Linescan Cameras

    San Diego, CA - Viewbits, the industrial cameras division of CMI, announced today that they are now shipping their new high speed, high resolution 12 megapixel CMOS machine vision camera. Iyeron is a compact shock-resistant camera with a 1.9-inch CMOS monochrome progressive scan sensor. The camera offers HXGA 4096 (H) x 3072 (V) pixel resolution at a full frame speed of 25 frames per second (fps). Until recently only linescan cameras offered such horizontal resolutions.

    Iyeron features extremely high resolution and a high signal-to-noise ratio. It is designed for high speed video capture, factory automation, machine vision, robotics, military uses, and medical or scientific imaging.

    The 12 megapixel camera’s faster frame speed is possible via the programmable Window of Interest (WOI) partial scanning mode. WOI can be programmed to display up to 28 square windows within one image and then allow the user to select only certain windows to be read out.

    The Camera Link industry standard interface (10/8 bit) makes it easy to install the camera in new and existing systems.

    "With 12 megapixels and a full-frame rate of 25 frames per second, the Iyeron delivers exceptionally sharp high resolution," noted Ray Asturias, Sales Engineer for Viewbits. "The Iyeron’s strong shock resistance makes it ideal for manufacturing, motion analysis, and military applications."

    The Iyeron camera also features high sensitivity of 2000 lx (F5.6), large square pixels (6.0 µm x 6.0 µm), a random trigger shutter, an electronic global shutter, a wide dynamic range (multi-slope), and a compact size of less than three inches wide.

    Features
    • 1.9-inch CMOS monochrome progressive scan sensor
    • High resolution and high speed
    • 12 megapixel imaging
    • Highly shock resistant
    • Captures full frame images at speeds up to 25 frames per second
    • 4096 (H) x 3072 (V) pixels
    • View up to 28 Windows of Interest (WOI) at one time
    • Video Input: LVDS
    • Video Output: Camera Link® (Medium)
    • Large square pixels (6.0 µm x 6.0 µm)
    • 4:3 aspect ratio
    • High sensitivity of 2000 lx (F5.6)
    • Electronic global shutter
    • Random trigger shutter
    • Camera Link interface (10/8 bit selectable)
    • Low noise
    • Compact size - less than three inches wide


    Suggested Retail Price:
    Iyeron - $10,995 U.S.


    Viewbits and Iyeron are trademarks of Computer Modules, Inc.
    All other trademarks and registered trademarks are the properties of their respective owners.

    About CMI and Viewbits
    CMI, founded in 1982, is a privately held company headquartered in San Diego, California. Viewbits, the Industrial Cameras division of Computer Modules, Inc., sells HD, USB-2, CMOS, and X-Ray cameras to companies throughout the world.

    Viewbits, 11409 West Bernardo Ct. San Diego, CA, 92127
    Web: www.viewbits.com phone: +1 (858) 613-1818, fax: +1 (858) 613-1815
