Vayu HD thermal camera from Sierra-Olympic targets security and surveillance imaging

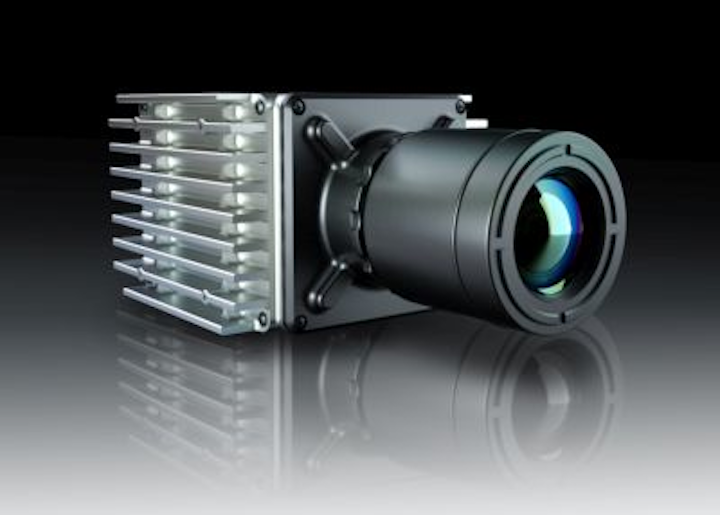

Featuring an IP67-rated housing and 206mm L x 128mm W x 91mm H size, the Vayu HD thermal camera from Sierra-Olympic Technologies was designed for deployment into applications including security, border protection, military imaging, airborne recon, and wide area surveillance.

Content Dam Vsd En Articles 2017 09 Vayu Hd Thermal Camera From Sierra Olympic Targets Security And Surveillance Imaging Leftcolumn Article Headerimage File

Featuring an IP67-rated housing and 206mm L x 128mm W x 91mm H size, the Vayu HD thermal camerafrom Sierra-Olympic Technologies was designed for deployment into applications including security, border protection, military imaging, airborne recon, and wide area surveillance. The camera features a 1920 x 1200 uncooled VOx microbolometer with a 12 µm pixel size, a top frame rate of 30 fps, and a longwave infrared (LWIR) spectral response of 8 to 14 µm. Vayu HD’s processor core also offers real-time extended image processing tools, electronic image stabilization, on-board image and video storage, and optional capabilities including object tracking and moving target detection. Additionally, the camera offers three video formats: HD-SDI, h.264 IP-Video, or 16-bit Camera Link output.

To Learn More:

Contact:Sierra-Olympic Technologies
Headquarters
: Hood River, OR, USA
Product:
Vayu HD thermal camera
Key Features: 1920 x 1200 uncooled Vanadium Oxide (VOx) microbolometer focal plane array with a 12 µm pixel size, LWIR sensitivity, IP67 housing, 30 fps frame rate, Camera Link interface.

What Sierra-Olympic says:
View more information on the camera.
