Camera board from e-Con Systems is designed for NVIDIA Jetson TX1

Featuring a 4-lane MIPI camera serial interface 2 (MIPI CSI-2), the e-CAM30_CUTX1 camera from e-con Systems is a custom lens and camera board for the NVIDIA Jetson TX1 developer kit.

Content Dam Vsd En Articles 2017 06 Camera Board From E Con Systems Is Designed For Nvidia Jetson Tx1 Leftcolumn Article Headerimage File

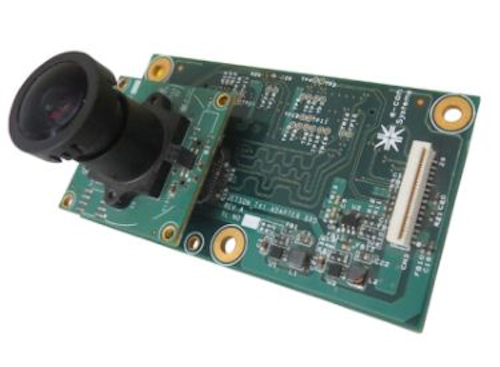

Featuring a 4-lane MIPI cameraserial interface 2 (MIPI CSI-2), the e-CAM30_CUTX1 camera from e-con Systems is a custom lens and camera board for the NVIDIA Jetson TX1 developer kit. The camera features a 1/3", 3.4 MPixel AR0330 CMOS image sensor from ON Semiconductor, which has a 2.2 µm pixel size ad reaches a frame rate of 30 fps. The camera can be connected directly to a J22 camera connector on the NVIDIA TX1 developer kit, and features a fixed-focus S-Mount (M12) lens holder, 39 dB signal-to-noise ratio, 69.5 dB dynamic range, and uncompressed YUV422 output format. Additionally, the camera—which measures just 75.03 mm x 40.18 mm x 25.6 mm without the lens—features a Linux camera driver (V4L2).

To Learn More:

Contact:e-con Systems
Headquarters: Tamil Nadu, India
Product: e-CAM30_CUTX1 camera
Key Features: 75.03 mm x 40.18 mm x 25.6 mm camera board designed for NVIDIA Jetson TX1 developer kit, 4-lane MIPI camera serial interface 2.

What e-con Systems says:
View more information on the e-CAM30_CUTX1.
