• Light source driver and controller can be deployed in various imaging applications

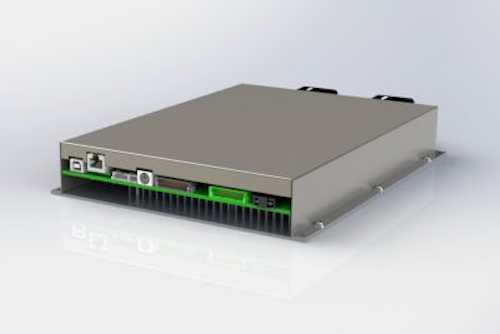

    Targeted for use in technical and industrial applications such as LED lighting for machine vision, CCTV security and surveillance, and license plate recognition, the 5500A Solid-State Source Driver/Controller from Innovations in Optics drives, controls, and modulates as many as 18 different solid-state sources, including combinations of LEDs and LDs, and even IR VCSEL arrays.
    July 11, 2017
    2 min read

    Targeted for use in technical and industrial applications such as LED lightingformachine vision, CCTV security and surveillance, and license plate recognition, the 5500A Solid-State Source Driver/Controller from Innovations in Optics drives, controls, and modulates as many as 18 different solid-state sources, including combinations of LEDs and LDs, and even IR VCSEL arrays. The 5500A features +24 VDC at 25A input and its ground-based design is configured for common cathode LED or LD devices which allows for multiple channels to be run in parallel for a combined current of up to 54A. Additionally, the 5500A provides constant current in continuous mode or pulsed mode to a minimum pulse width <20 microseconds and a maximum 15 kHz rep. rate. Drive current is selectable from 0A to 3A per channel with 10-bit resolution at a maximum compliance voltage of 6.0VDC.

    To Learn More:

    Contact:Innovations in Optics
    Headquarters: Woburn, MA, USA
    Product:
    5500A Solid-State Source Driver/Controller
    Key Features: From 1 to 18 channels, 0A to 3A per channel selectable drive current, +24 VDC at 25A input, continuous mode or pulsed mode.

    What Innovations in Optics says:
    View more information on the 5500A.
