SWIR camera from FLIR targets science and R&D applications

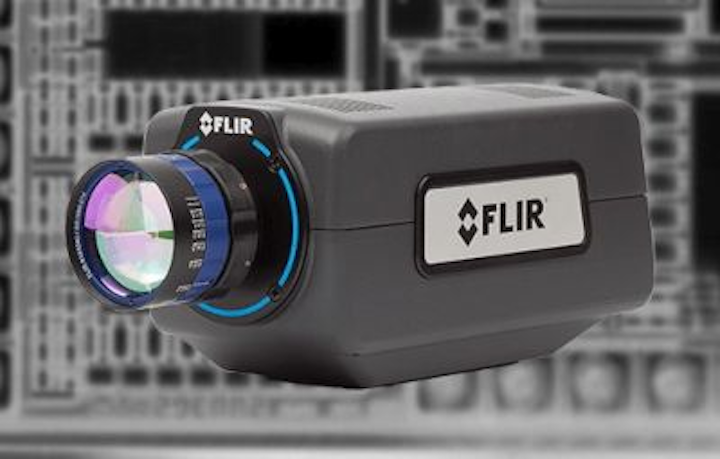

Designed for science and research and development (R&D) applications, the A6260c shortwave infrared (SWIR) camera from FLIR is based on a 640 x 512 InGaAs detector optimized to the 0.9 to 1.7 µm or 0.6 to 1.7 µm waveband.

Content Dam Vsd En Articles 2018 01 Swir Camera From Flir Targets Science And R D Applications Leftcolumn Article Headerimage File

Designed for science and researchand development (R&D) applications, the A6260c shortwave infrared(SWIR) camera from FLIR is based on a 640 x 512 InGaAs detector optimized to the 0.9 to 1.7 µm or 0.6 to 1.7 µm waveband. The sensor includes three user selectable gain states offering a 75x gain factor, as well as a 15 µm pixel size and a frame rate of up to 180 fps at full resolution. Additionally, the camera features adjustable frame rates, synchronized triggering, a built-in flat field shutter that can be manually or automatically controlled for spatially-uniform image quality, as well as FLIR ResearchIR Max software, which enables viewing, recording, and advanced processing of thermal data. FLIR’s A6260sc is also GigE Vision and GenICam compliant.

To Learn More:

Contact:FLIR Systems Inc.
Headquarters: Wilsonville, OR, USA
Product:
A6260c SWIR camera
Key Features: 640 x 512 InGaAs detector optimized to the 0.9 to 1.7 µm or 0.6 to 1.7 µm waveband, 180 fps at full resolution, GigE Vision interface, ResearchIR software.

What FLIR says:
View more information on the camera.
