20 MPixel Phoenix industrial camera from LUCID in production

LUCID Vision Labs' 20 MPixel Phoenix camera, which features Sony's IMX183 Exmor R back-illuminated CMOS image sensor, has entered series production. The new camera is based on the monochrome and color 1" rolling shutter image sensor that features a 2.4 µm pixel size and captures full resolution images at 6 fps.

Content Dam Vsd Online Articles 2018 11 Lucid 20 Megapixel Phoenix Camera

LUCID Vision Labs' 20 MPixel Phoenix camera, which features Sony's IMX183 Exmor R back-illuminated CMOS image sensor, has entered series production. The new camera is based on the monochrome and color 1" rolling shutter image sensor that features a 2.4 µm pixel size and captures full resolution images at 6 fps.

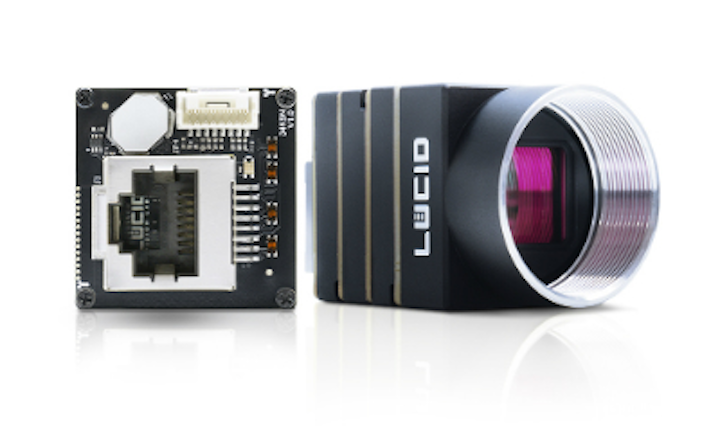

The 20 MPixel Phoenix camera is 28 x 28mm in size and has a board layout that can be tri-folded into a stacked camera or unfolded into 90° or 180° orientations. The camera's Hirose ix Industrial Ethernet connector features snap-in positive locking, and the new Phoenix model conforms to GigE Vision 2.0 and GenlCam 3 standards.

Pricingbutton

To Learn More:

Contact:LUCID Vision Labs, Inc.
Headquarters: Richmond, BC, Canada
Product:20 Megapixel Phoenix Camera
Key Features:IMX183 Exmor R back-illuminated CMOS image sensor, monochrome and color 1" rolling shutter with 2.4 µm pixel size, full-resolution 6 fps capture.
