• Phrontier announces repeater for Camera Link Full configurations

    Featuring a mini camera link connector in a slim yet robust metal case, PHLY transmits high speed data with flexible PoCL configurations.
    July 7, 2010
    2 min read

    PRESS RELEASE

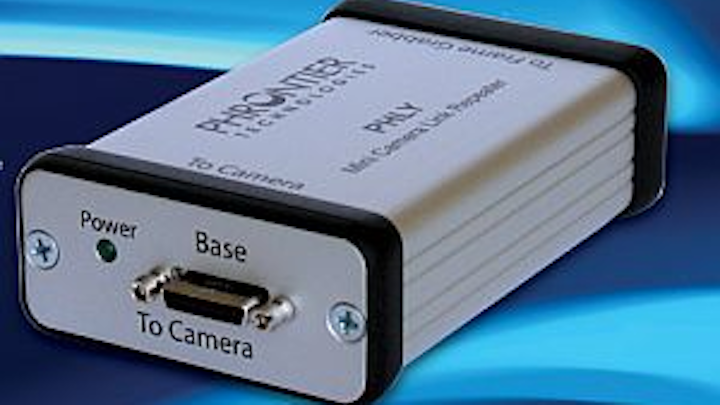

    PHLY is the ultimate solution for duplicating camera link cable length for all base, medium and full configurations up to 85MHz. Featuring a mini camera link connector in a slim yet robust metal case, PHLY transmits high speed data with flexible PoCL configurations at your choice. The state-of-the art design allows easy and simple future upgrading as your system requirements change. PHLY is the preferred camera link repeater for space saving and cost sensitive applications.

    Key Features
    • Fully supports Camera Link cameras/framegrabbers up to 85MHz pixel clock
    • Plug-and-Play, no programming required
    • PoCL pass-through function allows PoCL compatible cameras to withdraw power from frame grabbers while PHLY power is supplied by its own DC input
    • PoCL sharing function allows PoCL compatible cameras and PHLY to share power from frame grabbers
    • PoCL enable function allows PHLY to withdraw power from frame grabber while camera is not PoCL compatible
    • Optional power supply to camera when frame grabber does not have PoCL function
    • Modules can be cascaded to increase link distance and share the same power source
    • Single 5V~24V DC power supply

    Product NumberDescription
    PHLY-BxMini Camera Link repeater, Base, 24bit
    PHLY-FxMini Camera Link repeater, Full/medium/base, 10×8bit
    PHLY-UxMini Camera Link repeater upgrade module
    PHLY-WOptional mounting flange kit (2 pieces)

    PoCL Options (please specify when ordering):
    x = blank: Standard with PoCL pass-through and PoCL sharing function
    = E: PoCL enable function for PoCL framegrabber and non PoCL camera
    = P: PHLY supply power to camera with non-PoCL framegrabber

    Camera Link Cables for PHLY
    Mini Camera Link to Standard Camera Link Cables
    Product Number: 618-MCLT26-xx
    Standard SDR26 plug to MDR26 plug (also known as mini Camera Link to standard
    Camera Link) cable. Available in 1, 2, 3, 5 and 10 meters

    Product NumberDescription
    618-MCLT26-01Camera Link plug to mini Camera Link plug, 1m
    618-MCLT26-02Camera Link plug to mini Camera Link plug, 2m
    618-MCLT26-03Camera Link plug to mini Camera Link plug, 3m
    618-MCLT26-05 Camera Link plug to mini Camera Link plug, 5m
    618-MCLT26-10 Camera Link plug to mini Camera Link plug, 10m


    Phrontier Technologies
    Hacienda Heights, CA, USA
    www.phrontier-tech.com
