IDS GigE board camera measures 45 × 45 mm

IDS Imaging Development Systems' GigE uEye LE industrial camera offers 1.3-Mpixel resolution with a GigE interface in a board-level format measuring 45 × 45 mm to target large-volume OEMs.

Nov 19th, 2012
IDS GigE board camera measures 45 × 45 mm
IDS GigE board camera measures 45 × 45 mm

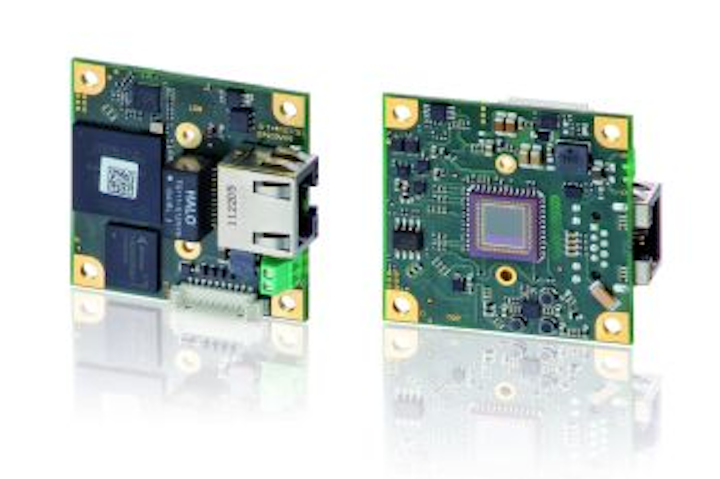

The GigE uEye LE industrial camera offers 1.3-Mpixel resolution with a GigE interface in a board-level format measuring 45 × 45 mm to target large-volume OEMs. The GigE interface enables frame rates up to 150 frames/sec to be transferred over cables up to 100 m long. The 1280 × 1024-pixel e2vCMOS sensor supports monochrome and color versions, as well as a model with dynamic range in the NIR region of the spectrum. The camera features digital in- and outputs for trigger, flash, pulsewidth modulation, and two GPIOs. Power (12-24 V) is supplied via external power supply. An M12 lens mount from Lensation is available as an option.
IDS Imaging Development Systems
Woburn, MA, USA

-- Posted by Vision Systems Design

View More Vision+Automation Products

Locate a vendor or system integrator in our Online Buyer's Guide

---

NEW PRODUCT PRESS RELEASE

IDS Board-level Camera Brings Megapixel Performance and GigE Flexibility to Limited Space Vision Applications

WOBURN, MA -- IDS Imaging Development Systems, a global leader in medical and machine vision, has introduced the GigE uEye LE industrial camera that merges 1.3 megapixel performance with GigE imaging in a small, board-level format. Measuring just 45mm x 45mm, this compact camera provides an increased degree of mounting flexibility in limited space applications such as semiconductor inspection, failure analysis, and high speed/high resolution imaging.

Tailored to the needs of large volume OEMs, the affordable GigE uEye LE features the GigE interface, helping it achieve frame rates as high as 50 fps at full resolution while also allowing for the use of cables up to 100 meters long. Outstanding versatility comes from its 1280 x 1024 pixel CMOS sensor from e2v available in monochrome and color versions, as well as an NIR model with dynamic range in the near-infrared region of the spectrum.

The GigE uEye LE has a rich feature-set sought after by OEM customers, including digital in- and outputs for trigger, flash, pulse-width modulation and 2 GPIOs. Power (12-24 V) is supplied via an external power supply. An M12 lens mount from Lensation is available as an option.

When used with IDS software package 4.01, the e2v sensor provides a new Log Mode especially designed for HDR images that assures sharp details even in overexposed and high dynamic range scenes. Additionally, the new sensor boasts 4 shutter modes -- rolling shutter, rolling shutter with global start, global shutter and global shutter with alternative timing -- making the GigE uEye LE a perfect fit for a great range of industrial applications.

For more information, call (781) 787-0048. E-mail: usasales@ids-imaging.com.

ABOUT IDS
IDS is a leading manufacturer of digital industrial cameras and frame grabbers. The company was founded by two engineers in 1997. Their mission then and now is to develop, manufacture and distribute industrial grade imaging components with an excellent price/performance ratio and maximum ease of use. IDS is internationally represented by a subsidiary in the USA and through a network of distributors in almost all European and Asian countries. About half of IDS employees are engineers in hardware and software development as well as applications engineering. IDS customers include OEMs, system integrators and manufacturers in the industrial, security, scientific and medical industries. Over 300,000 IDS frame grabbers and 250,000 USB and GigE uEye cameras are in use worldwide today.

SOURCE: IDS Imaging Development Systems
