Matrix Vision's smart camera uses an ARM core plus a separate DSP

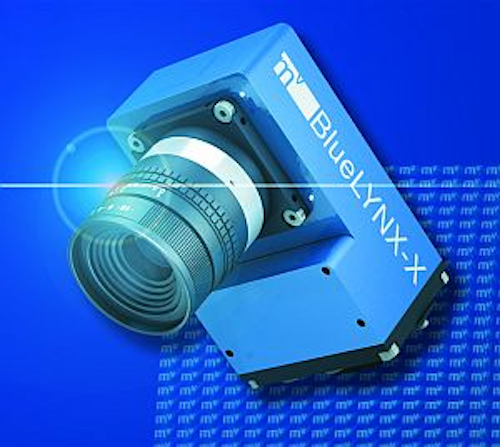

MATRIX VISION's intelligent camera solution mvBlueLYNX-X uses Texas Instruments’ OMAP 3 series.

Content Dam Etc Medialib New Lib Vision Systems Design Online Articles 2010 09 97498


The reduction of power consumption and size together with increasing power are the three common approaches to become eco-friendly in Automation. Automation solutions like intelligent cameras and smart vision sensors require a lot of processing power. Here in particular, there are potential savings with the right choice of the processor concept. Currently, there are two concepts on the market: Intel’s Atom is deemed to be a low power processor, however, ARM processors have a better savings potential because they not only have reduced power requirements, but also are smaller in size.

For this reason, MATRIX VISION's (Oppenweiler, Germany) new intelligent camera solution mvBlueLYNX-X uses Texas Instruments’ OMAP 3 series. These processors feature a powerful ARM-Cortex-A8 core and offer an efficient performance up to 1 GHz plus an additional, separate DSP. Atom processors reach use higher processor clocks, however, they have a considerably higher power consumption. Typically, Atom systems need 15 Watts, whereas mvBlueLYNX-X only operates with 5 Watts under full load.

By using the ARM processor a small housing is possible. Without lens, the mvBlueLYNX has a size of 85 x 55 x 35 mm (H x W x D). Besides the size, OEMs and system integrators also benefit from the wide range of interfaces. The camera series feature 100 Mbit LAN; two USB 2.0 interfaces, RS-232, digital inputs and outputs, display output as well as MicroSD card interfaces. A wide range of high quality global shutter CMOS sensors from WVGA to SXGA are also available. As lens holder, the S-Mount is standard, but C- and CS-Mount lens holders are available as an option. Models with integrated illumination improve the handling and guarantee image quality. Furthermore, models with IP65 are available as well.

A .NET compliant MONO interface allows the comfortable development of software. MONO makes it possible to develop .NET based cross platform applications and to use them on the mvBlueLYNX-X without further compiling.

The mvBlueLYNX-X will be available at the beginning of 2011.

Source: Matrix Vision GmbH
