OS02C10 ultra low light image sensor released by OmniVision Technologies

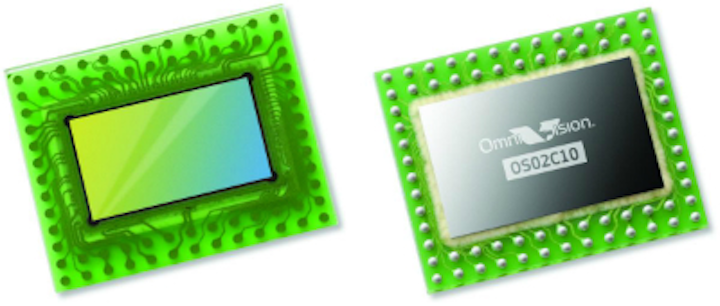

The OS02C10 image sensor from OmniVision Technologies, Inc. is a 2.9 µm, 2 MPixel sensor with a quantum efficiency of 60% at 850 µm and 40% at 940 µm. According to OmniVision, these quantum efficiency levels provide a 3x reduction in system-level power consumption.

Content Dam Vsd Online Articles 2018 12 Omnivision Os02c10 Image Sensor

The OS02C10 image sensor from OmniVision Technologies, Inc. is a 2 MPixel sensor with a 2.9 µm pixel size, and a quantum efficiency of 60% at 850 µm and 40% at 940 µm. According to OmniVision, these quantum efficiency levels provide a 3x reduction in system-level power consumption.

The OS02C10 has an SNR1850nm rating of of 23 nw/cm2 and an SNR1940nm rating of 31 nw/cm2. While producing 1080p images, the OS02C10 has an SNR1 rating of 0.16 lux. The new sensor has a high dynamic range of 120 db.

Pricingbutton

To Learn More:

Contact: OmniVision Technologies, Inc.
Headquarters: Santa Clara, CA, USA
Product: OS02C10 image sensor
Key Features: 2 MPixel sensor, 2.9 µm pixel size,. quantum efficiency of 60% at 850 µm and 40% at 940 µm.

What OmniVision Technologies says:
View more information on the OS02C10 image sensor.
