3.1 Meg CMOS Cheetah Camera
3.1 Meg CMOS Cheetah Camera

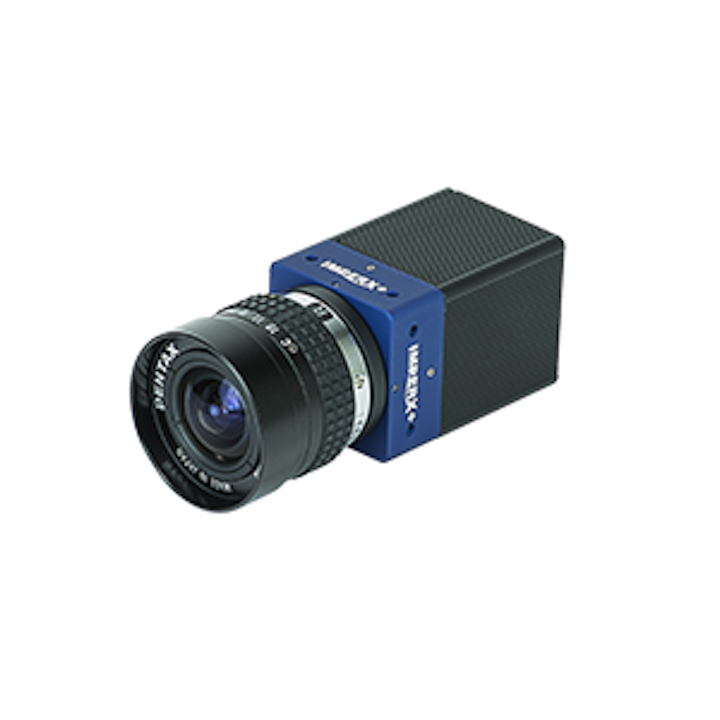

The C2020 is our most technically advanced, ruggedized, progressive scan digital camera in a compact design ideal for industrial, scientific, medical, aerospace, transportation and other applications. The C2020 incorporates a number of unique features tailored to reduce system complexity, maximize interface bandwidth, and expand the usable operational range.

The C2020 features the Sony Pregius IMX252 Global Shutter CMOS image sensor with a native resolution of 2064 x 1544 in a 1/1.8” optical format delivering up to 148 frames per second with Camera Link® Full Power over Camera Link (PoCL®) output. CMOS technology eliminates smear columns from areas of ultra-bright intensity and specular reflections in uncontrolled lighting applications. The camera has excellent sensitivity, fast frame rates, exceptional dynamic range and supports strobe outputs, trigger inputs, automatic exposure, automatic gain control with multiple LUTs, and other high-value functions.

The Imperx Cheetah line provides excellent image quality with Imperx proprietary processing. In addition, Imperx puts you in control and gives you full access to raw data without corrections. Using the simple, intuitive graphical user interface, you can quickly apply image corrections, if desired. The C2020’s flexibility, image quality, and speed make it suitable for a broad range of diverse and demanding applications, but “one size doesn’t fit all,” and Imperx can help optimize the camera to your exact requirements.
Request More Information

Fill out the form below to request more information about 3.1 Meg CMOS C2020 Cheetah Camera.
