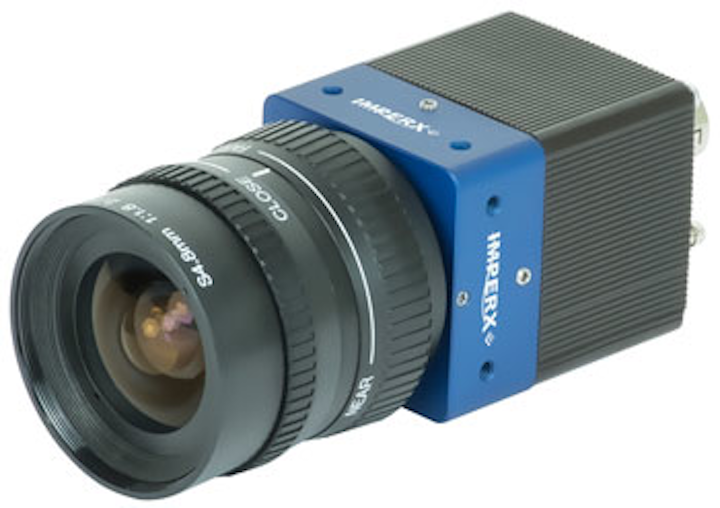

5 Meg CMOS C2420YZ Cheetah Camera with Polarization Filters

5 Meg CMOS Cheetah Camera with Polarization Filters
5 Meg CMOS Cheetah Camera with Polarization Filters
The C2420Y/Z is our most technically advanced, ruggedized, progressive scan digital camera in a compact design ideal for industrial, scientific, medical, aerospace, transportation and other applications. The C2420Y/Z incorporates a number of unique features tailored to reduce system complexity, maximize interface bandwidth, and expand the usable operational range.

The C2420Y/Z features the Sony Pregius IMX250MZR Global Shutter CMOS image sensor with a native resolution of 2464 x 2056 in a 2/3” optical format delivering up to 97 frames per second with a Camera Link® Full Power over Camera Link (PoCL®). The sensor is available in monochrome (Z) or color (Y) versions and has a unique 2x2 pixel sub-array where each pixel within the sub-array blocks a different polarization filter angle (0, 45, 90 or 135 degrees). This allows the user to obtain images with four different polarization angles in each image capture. CMOS technology eliminates smear columns from areas of ultra-bright intensity and specular reflections in uncontrolled lighting applications. The camera has excellent sensitivity, fast frame rates, exceptional dynamic range and supports strobe outputs, trigger inputs, automatic exposure, automatic gain control with multiple LUTs, and other high-value functions.

The Imperx Cheetah line provides excellent image quality with Imperx proprietary processing. In addition, Imperx puts you in control and gives you full access to raw data without corrections. Using the simple, intuitive graphical user interface, you can quickly apply image corrections, if desired. The camera allows the user to select and view images from each polarization angle or save raw image files with all four polarization angles. The C2420Y/Z’s flexibility, outstanding sensitivity, and speed make it suitable for a broad range of applications from reducing glare off glass, water, and painted surfaces to materials science or 3D image reconstruction.
