MiR releases smaller-sized goods transportation robot

April 29, 2020

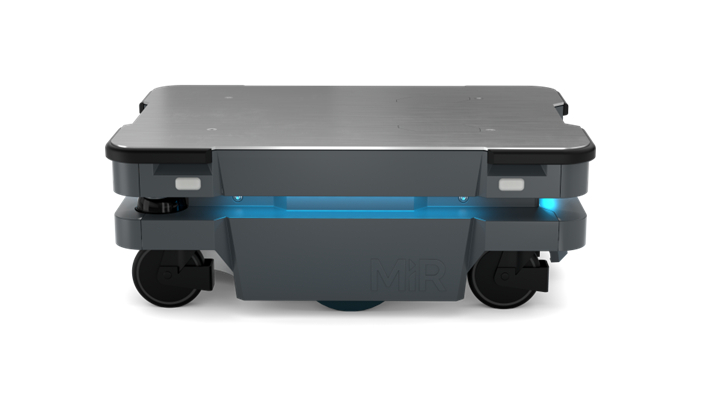

The MiR250 is designed to navigate in tightly-spaced environments.

The MiR250 autonomous mobile robot is built for internal goods transportation, with a maximum payload of 250 kg. The robot is 800 (L) x 580 (W) by 300 (H) mm in size and designed to navigate through tight industrial spaces such as 80 cm door openings, small elevators, and under tables.

Sensors include two SICK Nanoscan 3 laser scanners with 360° field of view (FoV), two Intel RealSense D435 3D cameras that can detect objects 1800 mm high at 1200 mm range, and eight proximity sensors, with a total horizontal view of 114° and minimum ground view distance of 250 mm. Interface options include four digital inputs and outputs and one Ethernet port. The MiR250 supports 2.4 GHz and 5 GHz WiFi connections with two internal antennas and meets EN 1525: 1997, B56.5-2012 and ISO/FDIS 3691-4 safety standards.


To Learn More:

Contact: Mobile Industrial Robots
Headquarters: Odense, Denmark
Product: MiR250 robot
Key Features: 800 x 580 x 300 mm footprint, 250 kg max payload, two laser scanners, two 3D cameras, eight proximity sensors.

What MiR says: View more information on the MiR250 robot.
