Multi-camera solution for NVIDIA Jetson launched by e-con Systems

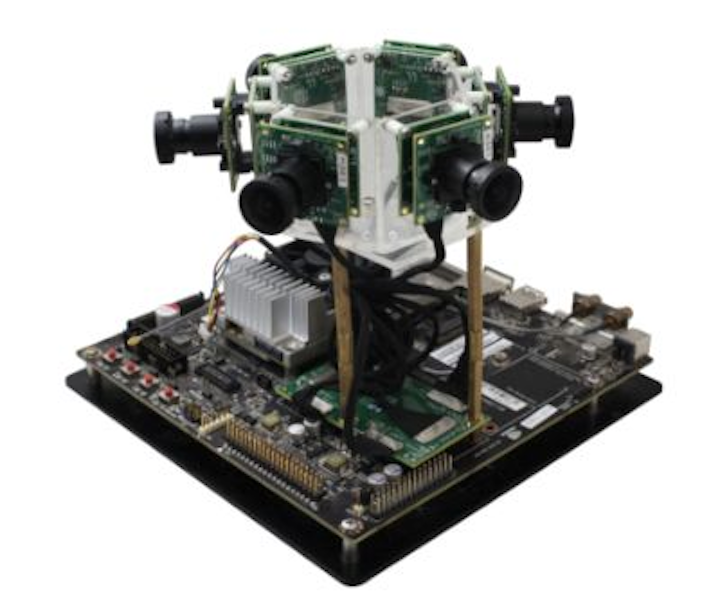

Designed for use on the NVIDIA Jetson TX1/TX2 development kit, the e-CAM30_HEXCUTX2 from e-con Systems Inc. is a multiple camera solution that targets applications requiring multiple full HD cameras.

Content Dam Vsd En Articles 2017 10 Multi Camera Solution For Nvidia Jetson Launched By E Con Systems Leftcolumn Article Headerimage File

Designed for use on the NVIDIA Jetson TX1/TX2development kit, the e-CAM30_HEXCUTX2 from e-con Systems Inc. is a multiple camera solution that targets applications requiring multiple full HD cameras. NVIDIA’s TX1 and TX2 can support up to six 2-lane MIPI CSI-2 cameras simultaneously, and as a result, the e-CAM30_HEXCUTX2 consists of six e-CAM30_CUMI0330_MOD cameras. These board-level cameras feature the 3.4 MPixel AR0330 color CMOS image sensor from ON Semiconductor and integrated advance image signal processor, M12 lens, and are connected to the e-CAMHEX_TX2ADAP adapter board using customized Micro-Coaxial cables. From there, the adapter board interfaces with the J22 connector on the Jetson TX1/TX2.

The e-CAM30_HEXCUTX2 streams 720p(HD), 1080p (Full HD) and 3.4 MPixel at 30 fps in uncompressed YUV422 format in both synchronous and asynchronous mode. Additionally, e-con Systems has developed the V4L2 API based camera driver on top of the JetPack 2.3/3.0 version from NVIDIA. This driver is a standard V4L2 driver and any V4L2 compatible application can access this camera. This solution, suggests e-con Systems, can be deployed into applications that require 360° imaging, including surveillance, autonomous vehicles, robotics, drones, and more.

To Learn More:

Contact:e-con Systems
Headquarters: Tamil Nadu, India
Product: e-CAM30_HEXCUTX2 multi-camera solution
Key Features: Designed for NVIDIA’s TX1 and TX2, interfaces to adapter board, features of six e-CAM30_CUMI0330_MOD cameras (3.4 MPixel CMOS sensor, board-level design, up to 60 fps).

What e-con Systems says:
View more information on the solution.
