26 MPixel area scan camera features CoaXPress 2.0 interface

April 23, 2021

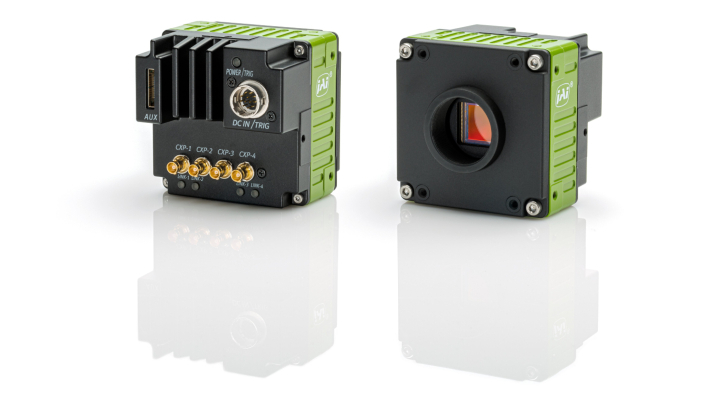

The SP-25000-CXP4A model camera can reach up to 150 fps image capture.

The SP-25000-CXP4A 26 MPixel camera, available in monochrome and Bayer color versions, features the Gpixel GMAX0505 CMOS global shutter image sensor with 5120 x 5120 resolution and 2.5 µm pixel size. The camera can provide full resolution image capture at 150 fps. Four-channel CoaXPress 2.0 interface enables 12.5 Gbps data transfer per lane for a total potential throughput of 50 Gbps.

Standard features include ROI and multi-ROI modes, horizontal/vertical image flipping, 128-index sequencing, auto-level control function, and lens control for transferring lens commands via Birger Mounts.

The camera also features C-mount lens mount and has a 62 x 62 x 60.5 mm footprint including lens mount and cooling fins.


To Learn More:

Contact: JAI
Headquarters: San Jose, CA, USA
Product: SP-25000-CXP4A camera
Key Features: 26 MPixel, 2.5 µm pixel, up to 150 fps, Four-channel CoaXPress 2.0, C-mount.

What JAI says:
View more information on the SP-25000-CXP4A camera.
