High-speed imaging system identifies production line errors

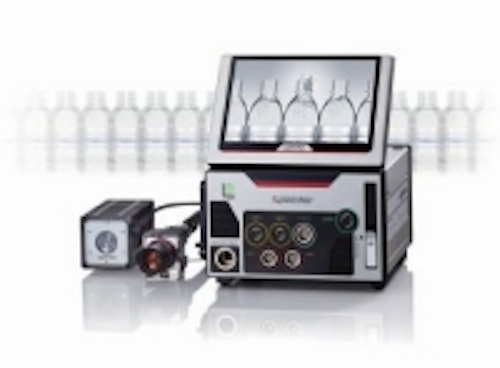

Featuring a 7-inch LCD remote touch screen, one or two miniature remote camera heads, a flexible cable, a low-temperature LED illumination unit, and a camera control unit with an integrated solid-state drive for direct recording, the PhotoCam SpeederV2 high-speed imaging system is designed to spot errors on production lines in factory automation settings.

Content Dam Vsd En Articles 2016 08 High Speed Imaging System Identifies Production Line Errors Leftcolumn Article Thumbnailimage File

Featuring a 7-inch LCD remote touch screen, one or two miniature remote camera heads, a flexible cable, a low-temperature LED illumination unit, and a camera control unit with an integrated solid-state drive for direct recording, the PhotoCam SpeederV2 high-speed imaging system is designed to spot errors on production lines in factory automation settings. The high-speed cameras provide up to 2,000 fps at full resolution via a 512 x 512 image sensor with 10 µm pixel size with 8-bit ADC (Bayer system color, 24-bit single sensor.) Higher frame rates, up to 10,000 fps, can be achieved in reduced resolution. The PhotoCam SpeederV2 is features two recording modes: Speed Priority mode for high-frame rate, full-resolution video capture to the onboard internal memory, and Time Priority mode for extended duration video capture (i.e. very long recording times at reduced frame rates and/or resolutions) which can be streamed to an integrated solid-state drive (SSD).

To Learn More:

Contact:Photron Inc.
Headquarters: San Diego, CA, USA
Product: PhotoCam SpeederV2 high-speed imaging system
Key Features: -7inch LCD remote touch screen, one or two miniature remote camera heads, a flexible cable, a low-temperature LED illumination unit, and a camera control unit with an integrated SSD.

What Photron says:.
View more information on the PhotoCam SpeederV2.
