Waveaxis optical inspection system sorts auto parts

Waveaxis’ auto parts vision inspection system, which features three 5 MPixel CCD cameras with C-Type telecentric lenses, enables the automated inspection of all types of flat auto components.

Content Dam Vsd Online Articles 2013 10 Auto Parts Inspection

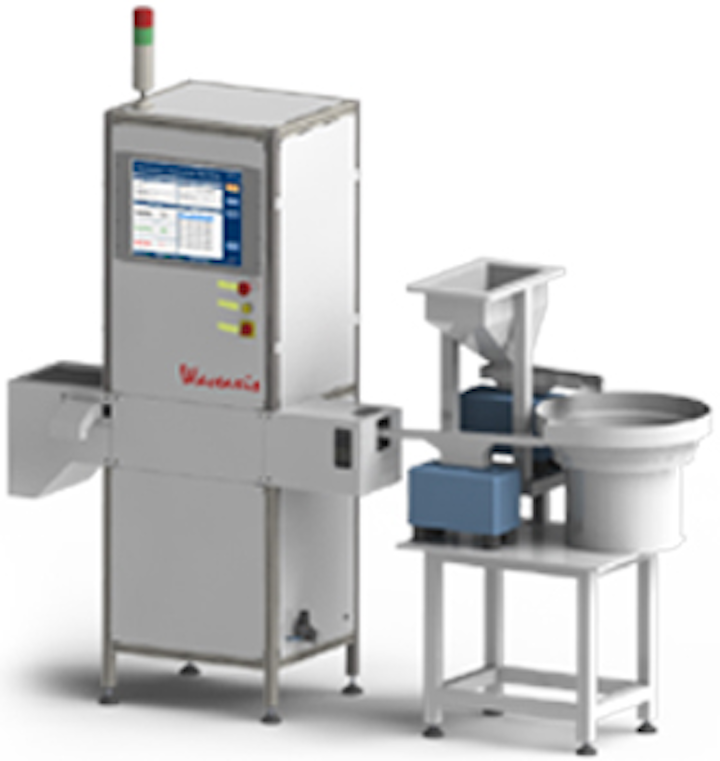

Waveaxis’ auto parts vision inspection system enables the automated inspection of all types of flat auto components. The system features (up to) three 5 MPixel CCD cameras with C-Type telecentric lenses, LED lights with auto on/off, a pneumatic pick and place handler or high speed conveyor, 17" touch screen monitor, a system size of 1160 x 615 x 1990, and a feeding unit size of 720 x 600 x 1300. The system can reportedly inspect 50 parts per minute with a maximum part size of 50 mm x 50 mm. The auto parts vision inspection system runs on Windows PC and features accompanying image processing software.

To Learn More:

Contact:
Waveaxis
Headquarters
: San Antonio, TX, USA
Product:
Auto parts vision inspection system
Key Features: Three 5 MPixel CCD cameras with C-Type telecentric lenses, LED lighting, pneumatic pick and place handler or high speed conveyor, 17" touch screen monitor.

What Waveaxis says:
View more information on the auto parts vision inspection system.
