• Telecentric lenses for line scan cameras

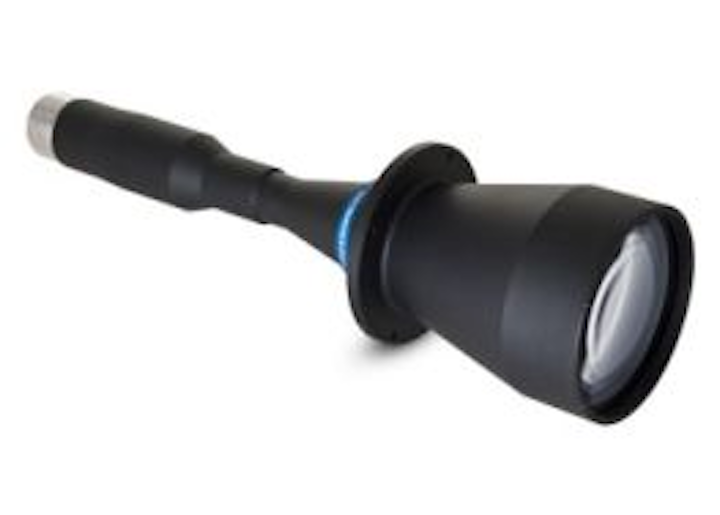

    The TC12K series of telecentric lenses from Opto Engineering were designed specifically to fit large format line scan cameras.
    May 29, 2013
    2 min read

    The TC12K series of telecentric lenses from Opto Engineering were designed specifically to fit large format line scan cameras. The 62.5 mm image circle diameter, combined with high-resolution capabilities, make the lenses suitable for use in 12K and 16K pixel line cameras. These lenses come in five different models of varying size, magnification and object fields of view, ranging from the TC 12K 062, which has a 0.960 magnification and a 162.8 mm working distance, to the TC 12K 192, which has a 0.320 magnification and a working distance of 265.5 mm. TC12K lenses are also suitable for use in flat panel display, solar cell and electronic board inspection, as well as large mechanical component measurement.

    To learn more:

    Contact: Opto Engineering
    Headquarters
    : Mantova, Italy
    Product:
    TC12K series of telecentric lenses
    Key Features:
    62.5 mm image circle diameter, five different TC12 models , varying magnification power, field of view and working distance.

    What Opto Engineering says:

    View more information on the TC12K series of telecentric lenses.
