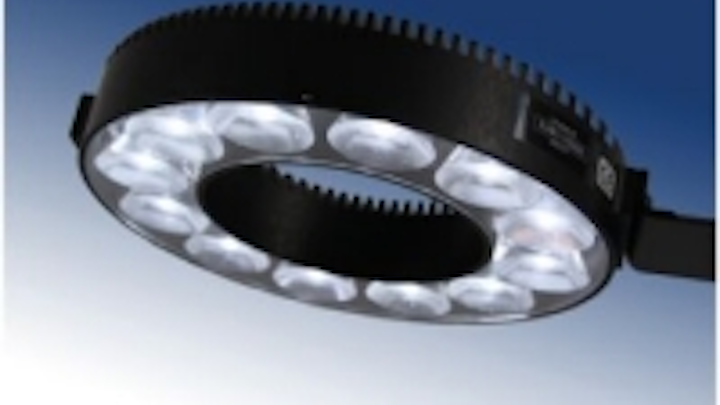

LATAB’s new LED ring light is designed for larger working distances in machine vision applications and is the first model in a new family of lighting heads. The ring lights have an outer diameter of 148 mm and are equipped with 12 LEDs that enable working distances of up to 1.5 m. Available in red and white, the lighting heads can be equipped with different lenses for light beam angles of 10, 18, 28, and 40°. The lights consist of a lighting head and continuous or strobe mode controller which can be controlled optionally with a top-hat-rail adapter for installation in switch cabinets. In addition, the new LED ring lights have a supply voltage of 24V but can be switched with a voltage between 5 and 24V.
To Learn More:
Headquarters: Vällingby, Sweden
Product: LED ring lights
Key Features: Equipped with 12 LEDs, working distance of up to 1.5m, outside diameter of 148 mm, can be equipped with different lenses for light beam angles of 10, 18, 28, and 40°.
What LATAB says:
View more information on the new LED ring lights.
