3D system enables non-contact volume gauging of automotive parts

LMI Technologies has announced the release of the Gocator Volume Checker, which is a 3D volume gauging solution that is designed for inspecting cylinder heads and piston bowls in small to medium-sized internal combustion engines.

Aug 17th, 2017

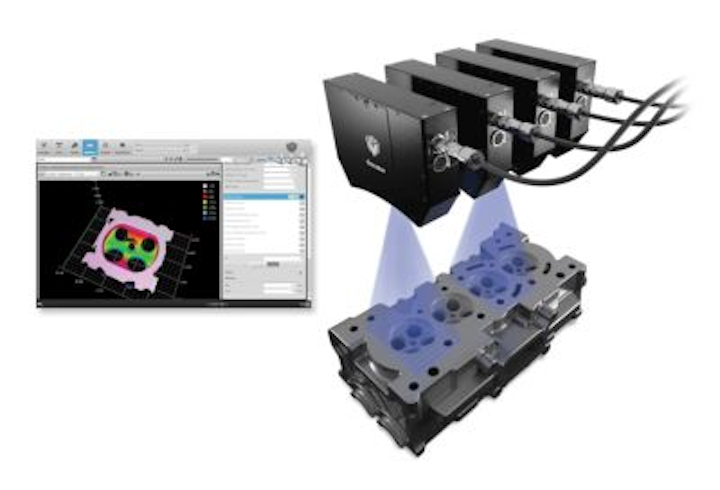

Content Dam Vsd En Articles 2017 08 3d System Enables Non Contact Volume Gauging Of Automotive Parts Leftcolumn Article Headerimage File

LMI Technologies has announced the release of the Gocator Volume Checker, which is a 3D volume gauging solution that is designed for inspecting cylinder heads and piston bowls in small to medium-sized internal combustion engines. The system features a Gocator 3210 3D snapshot sensor with custom built-in measurement tools to calculate the volume of automotive parts. The Gocator 3210 features a 2 MPixel stereo camera and achieves 3D snapshot scans at 35 μm. It also features a 100 x 154 mm field of view (FOV) for picking multiple features at once.

In addition, the Gocator Volume Checker uses blue LED structured light to take a single snapshot scan and deliver measurement results at ± 0.04cm3 accuracy. This measurement occurs in a cycle time of less than 5 seconds––even on combustion chambers and pistons with highly-reflective surfaces, according to LMI.

To Learn More:

Contact:
LMI Technologies
Headquarters: Delta, BC, Canada
Product: Gocator Volume Checker
Key Features: Gocator 3210 3D snapshot sensor with custom built-in measurement tools.

What LMI Technologies says:
View more information on the Gocator Volume Checker.
