P1100 embedded computer from Cincoze designed for robust display systems

The P1100 series fanless embedded computer from Cincoze can also be used as a system module for an industrial panel PC. The machine is powered by Intel Apollo Lake processors, the Atom x7-E3950 or Pentium N4200, and features integrated Gen9 Intel HD Graphics 505. Cincoze touts the P1100's processor as able to deliver "increased video encode and playback performance for media-rich applications."

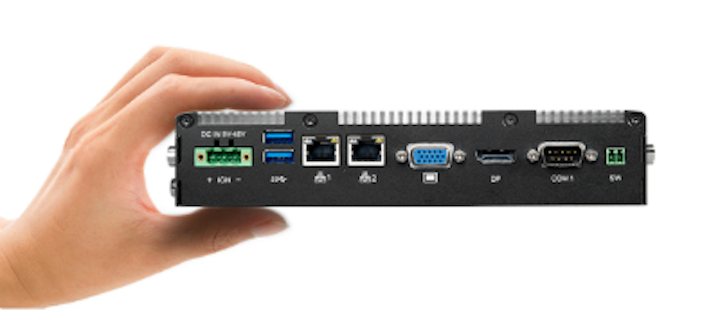

Content Dam Vsd Online Articles 2018 12 P1100 Embedded Computer Crop

The P1100 series fanless embedded computer from Cincoze can also be used as a system module for an industrial panel PC. The machine is powered by Intel Apollo Lake processors, the Atom x7-E3950 or Pentium N4200, and features integrated Gen9 Intel HD Graphics 505. Cincoze touts the P1100's processor as able to deliver "increased video encode and playback performance for media-rich applications."

Interfaces for the P1100 include two Intel GbF LAN, four USB 3.0, four COM, and eight Isolated DIO. The system can support three simultaneously-running, independent displays at 4K or 2K playback via the DisplayPort interface. Two mini PCIe slots and one SIM socket enable the P1100 to serve as a wireless data communication hub.

Data storage options for the P1100 include a 2.5" SATA drive bay and a mSATA socket with SATAIII interface. CFM modules add power ignition sensing and Power over Ethernet options. The P1100's 9V-48V DC power input includes a lockable terminal block connector that protects the system against power input faults.

Pricingbutton

To Learn More:

Contact: Cincoze
Headquarters: Taipei, Taiwan
Product: P1100 embedded computer
Key Features: Atom x7-E3950 or Pentium N4200 processor, integrated Gen9 Intel HD Graphics 505, extensive variety of interfaces.

What Cincoze says:
View more information on the P1100 embedded computer.
