Conoscope lens designed for flat panel display inspection

April 26, 2018

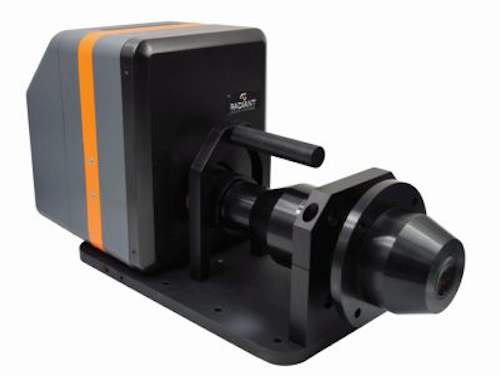

Designed to work with Radiant ProMetric imaging photometers and colorimeters, the flat panel display (FPD) conoscope lens can measure angular emissions of color, luminance, and contrast in FPDs to evaluate view angle performance up to ±70° in a single measurement, according to Radiant Vision Systems.

Designed to work with Radiant ProMetric imaging photometers and colorimeters, the flat panel display (FPD) conoscope lens can measure angular emissions of color, luminance, and contrast in FPDs to evaluate view angle performance up to ±70° in a single measurement, according to Radiant Vision Systems. The lens features a working distance of 3 mm and a minimum sampling area of 11 mm diameter, and by capturing luminance data from multiple viewing angles at once, enables manufacturers to quickly and accurately evaluate display view angle performance in real-time, in both R&D and production line environments, according to the company.

To Learn More:

Contact:Radiant Vision Systems
Headquarters Redmond, WA, USA
Product: FPD conoscope lens
Key Features:
View angle performance up to ±70°, working distance of 3 mm and a minimum sampling area of 11 mm diameter, direct mount to Radiant ProMetric imaging photometers and colorimeters.

What Radiant Vision Systems says:
View more information on the lens.
