LM76 linear slide supports clean processes

LM76's Whispah linear slide is designed for noncontaminating linear motion such as medical, pharmaceutical, and food processing equipment

vsdprodlm76052311
vsdprodlm76052311

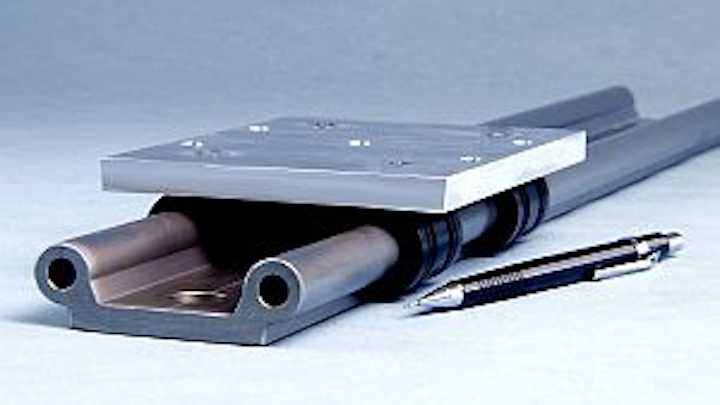

The Whispah linear slide is designed for noncontaminating linear motion applications such as medical, pharmaceutical, and food processing equipment. The WSP 1 Twin Rail System features a 4 × 5.5 in. table with a bearing measurement of 2.125 in. The WSP 2 measures 6 × 7 in. with a bearing centerline to centerline of 2.906 in.
LM76
East Longmeadow, MA, USA

-- Posted by Vision Systems Design

View More New Products

---

NEW PRODUCT PRESS RELEASE

E. Longmeadow, MA – The Whispah Linear Slide is low cost, has smooth motion, and is exceptionally quiet. Designed to fully utilize the properties of LM76's Minute Man Linear Bearings series such as: Low friction, high load capacity, high speed (400 SFM), shock absorption, self lubrication, zero absorption, very low friction (0.09 to 0.12 C of F), and noiseless. The stable two rail Whispah Linear Slide is suited for linear motion applications that must be non-contaminating to its environment such as medical equipment, pharmaceutical manufacturing systems, and food processing equipment, or operate in harsh environments such as ceramic tile wet saws, welding systems, caustic wash downs, and outdoor (all-weather) applications.

The light weight Whispah Linear Slide is available in two sizes. The WSP 1 Twin Rail System features a 4.00 in. long x 5.50 in. wide table with a bearing centerline to centerline measurement of 2.125 in. For greater load and higher stability the WSP 2 Twin Rail System features a 6.00 long x 7.00 in. wide table and a bearing centerline to centerline of 2.906.

The low profile Whispah 1 Linear slide can handles vertical loads (Co-ax) to 150 lbs and side loads (Co-rad) to 75 lbs. Whispah 2 Linear slide can handles vertical loads (Co-ax) to 225 lbs and side loads (Co-rad) to 125 lbs. Both Whispah Linear slides are available in lengths to 120 in. The aluminum two rail extrusion has a Hardcoat finish for long life, and each rail is hollow to allow for a water or air line and wiring. Predrilled mounting holes make integration into new or existing systems easy. It is a low profile system; however, there is room to easily mount a pneumatic cylinder or electro-mechanical linear actuator to operate the slide.

For additional information contact Mike Quinn at: LM76, 140 Industrial Dr.
E. Longmeadow, MA 01028; Telephone: 413-525-4166, Fax: 413-525-3735 or E-Mail: mquinn@lm76.com or visit the web site at: http://www.lm76.com.
