Splitter interfaces frame grabbers

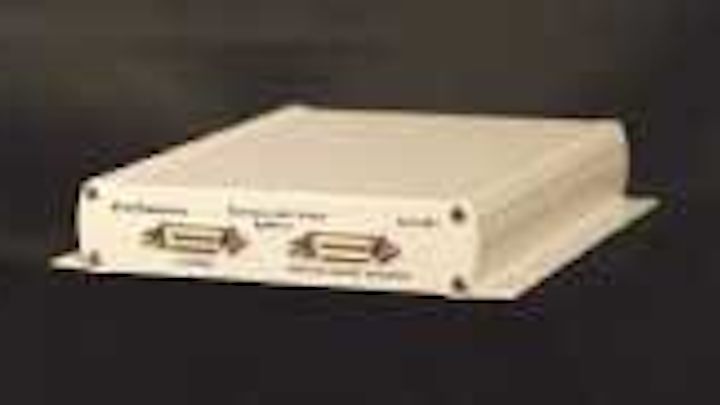

CLV-401 Camera Link Video Splitter interfaces one Camera Link camera to two frame grabbers, with one acting as the master. It supports Base configuration, and two can be combined to support Medium. CLV-401 can act as a repeater to double the distance between camera and frame grabber and can be cascaded to support four or eight frame grabbers. The splitter comes in aluminum enclosure with mounting flange and external power supply.
Shrewsbury, MA, USA
Frame grabber supports Camera Link
mvGAMMA-CL is a Camera Link frame grabber for digital CCD and line cameras. The frame grabber has a Base port with a maximum data-transfer rate of 95 Mbytes/s. An optoisolated IO for trigger and flash control is available at an additional connector. Configuration files are supplied for many CCD and line cameras, and an on-board processor converts Bayer Mosaic color images in real time to the current display format. This PCI-based frame grabber comes with ImpactGo! and the mvIMPACT Base Library with basic image-processing algorithms.
Color camera is simple, fast
BVS001 color image-processing system uses camera with 640 × 480-pixel CMOS sensor that reads 30 frames/s. The camera measures 138 × 40 × 47 mm in an aluminum housing and can be mounted with a wenglor angle bracket. A 197 × 241 × 80-mm vision control unit is equipped with four inputs, one permanently as a trigger input and the others configurable, and flash memory for processing via cable up to 10 m. A ring illuminator light uses eight LEDs, and image data are analyzed by proprietary software.
Small camera inspects quickly
SpecterView camera comes with a 1280 × 1024-pixel sensor that measures greater than 65-dB dynamic range at up to 500 frames/s. The camera is 4 × 3.5 × 3 in., weighs 1.8 lb, and has a USB 2.0 interface. Compatible with ActiveX, it integrates with the NI LabView software environment. Entire package includes camera, 6-ft USB cable, f/2.8 Vivitar lens, and CD software.
Southern Vision Systems
Madison, AL, USA
FireWire camera has 1394b interface
CV1280F machine-vision camera has an IEEE 1394b interface operating over fiberoptic cable up to 500 m. The sensor is a 2/3-in. CMOS device with 6.7 × 6.7-µm pixels, operating at 29 frames/s at 1280 × 1024 pixels or 114 frames/s at 640 × 480 pixels. The camera also has a 1394a port and another FireWire port for daisy-chaining cameras and operates in 8- and 10-bit modes. The housing is 89 × 51 × 38 mm.
Burnaby, BC, Canada
IP engine speeds video
iPort PT1000 ANL-2/12 and ANL-2/6 Analog Video IP Engines use FPGAs to perform IP conversion on up to 12 multiplexed analog video signals, transporting them to PCs over Gigabit Ethernet or LANs. The engines accept analog video formats such as S-video NTSC and PAL, RS-170, CCIR, and SECAM. Boxed, the engines come in 10.8 × 9.8 × 3.7-cm packages. The software-development kit includes C++ libraries and a Visual Basic library, and the application platform can be based on either Windows or Linux.
Kanata, ON, Canada
SWIR camera fits small spaces
The SDV line of short-wavelength infrared (SWIR) cameras operate at room temperature and use glass lenses. The SU640SDV-1.7RT is a 2-D camera with 640 × 512-pixel focal-plane array on a 25-µm pitch; the SDV linescan camera ..provides 1024-pixel array on a 25-µm pitch. Both cameras include 14-bit digitization, Camera Link compatibility, customizable gain and integration times, and multiple outputs.
Princeton, NJ, USA
Camera catches images fast
MotionXtra HG-LE uses a 16-channel, color or monochrome CMOS sensor to capture up to 752 × 1128 pixels at 1000 frames/s. The camera has a dynamic range of 62 dB, has a global electronic ..shutter variable to 5 µs, and can be synchronized to a master clock using the optional Hub Sync Unit to within ±2.5 µs. Interfaces include Ethernet, sync I/O, trigger in, power, and strobe out. C-mount, F-mount, and High-G box mounts are available. The HG-LE has 1 Gbyte of memory storage, weighs 9.9 lb, and is 5.33 × 4.15 × 11.10 in.
San Diego, CA, USA
Linescan camera simplifies use
L50 and L75 linescan cameras both have an 8-bit RS-644 interface and a 40-MHz pixel clock. L50 is a 5000-pixel CCD linescan camera with 7 × 7-µm pixels and a 7600-Hz maximum line rate. L75 has a 7450-pixel CCD with 4.7 × 4.7-µm pixels and a 5200-Hz maximum line rate. Both cameras are compatible with F-mount lenses.
Camera provides flexibility
MC 1310 and MC 1311 high-speed Camera Link cameras feature 1280 × 1024-pixel CMOS sensors and deliver 500 frames/s, or up to 10,000 frames/s in a selected area. The Full Camera Link output terminal delivers a maximum video data rate of 660 Mbytes/s. The MC 1310 is monochrome and the MC 1311 is color with a Bayer filter. The 12 × 12- µm pixels render gray value/half-tone resolution of 10 and 8 bits, and the camera has 59-dB dynamic range.
FireWire camera is sensitive
Retiga 1300R FireWire camera uses a Kodak progressive-scan interline CCD in a 1300 × 1030-pixel format with 12-bit digital output. The maximum speed is 165 frames/s. Full resolution is 11 frames/s at 12 bits. The camera comes in cooled or uncooled versions, has a sustained image data rate of 40 Mbytes/s, an electronic shutter, TTL input and output, and QCapture software. A software-development kit is available.
Burnaby, BC, Canada
Sensor inspects blade surfaces
CMMaster Optical Surface Gauges are noncontact, full-field, 3-D measurement systems to measure surfaces up to 24 × 24 in. Quartz halogen lighting and a Ronchi grating create a structure light pattern that is detected by an optical system using a second grating to produce moiré fringes, which are recorded by a 1300 × 1300-pixel, 10-bit Pulnix CCD camera. In-plane resolution is ≤1.7 mm; depth resolution is ≤0.025 mm. Image-acquisition speed is <10 frames/s.
Intelligent Quality Systems
Toledo, OH, USA
Barcode tool extends capabilities
Barcode Tool for Sapera Processing 5.2 software includes functions to support Data Matrix ECC200 and QR Code 2-D barcodes and 1-D barcodes: Code 39, Code 128, Codabar, Interleaved 2 of 5, BC-412, EAN13, EAN8, UPC-A, and UPC-E. The Barcode Tool can locate a barcode within an image, regardless of orientation, without having an ROI specified.
St-Laurent, QC, Canada
