Continuous wave Xenon light source provides high power output
HPX-2000 Xenon light sources from Ocean Optics provide continuous spectral output from 185-2,000 nm and have up to 2,000 hours of bulb life.

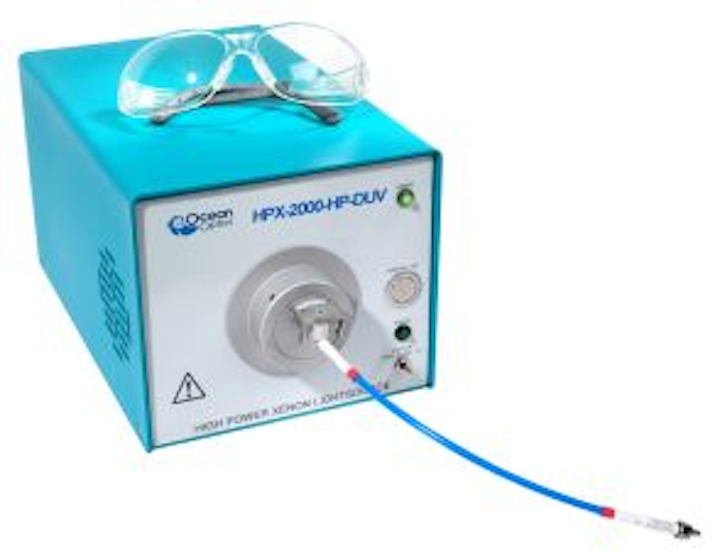

HPX-2000 Xenon light sources from Ocean Optics provide continuous spectral output from 185-2,000 nm and have up to 2,000 hours of bulb life. The HPX-2000 is a 35-watt, short-ac lamp with an integrated shutter that can be triggered by a switch or by transistor-transistor logic (TTL) signal. It also has a built-in slot for filters up to 25 mm in diameter or 25 mm square and up to 14 mm thick. The HPX-2000-HP-DUV provides a higher intensity source with a 75-watt lamp that provides output intensity over the entire 185-2,000 nm range that is three-and-a-half to four times higher than the output of the HPX-2000. It is also equipped with an integrated shutter that can be controlled by a switch on the front panel or a TTL signal over the rear panel.
To Learn More:
Headquarters: Dunedin, Fla., United States
Product:HPX-2000 Xenon light sources
Key Features: Spectral output from 185-2,000 nm, 2,000 hours of bulb life, integrated shutter, 35-watt lamp (HPX-2000), 75-watt lamp (HPX-2000-HP-DUV).
What Ocean Optics says:
View more information on Ocean Optics light sources.
