Framos offers Smartek LED strobe controllers that enable 8-A pulses

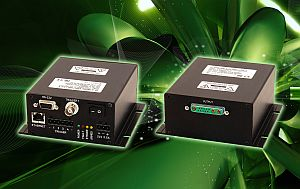

Smartek’s Strobe Controller (SC) series for LED lighting has Ethernet or RS-232 control interfaces, with full SDK support for both Windows and Linux. The strobe controllers feature 1, 2, 4, or 6 parallel channel options; digital and analog light-head coding; integrated temperature sensor; and built-in power supply in an industrial aluminum case. Pulses of up to 8 A and 200 V per channel are possible, with pulse duration variable from 1 μs to 1000 ms and with low trigger latency and low jitter. Inline current and voltage measurements prevent overdriving.
Framos Electronics Ltd.
Camberley, UK
-- Posted by Vision Systems Design
---
NEW PRODUCT PRESS RELEASE
Framos and Smartek Deliver Strobe Controller Series
High-end LED illumination controllers for real professionals
Camberley, UK – Framos Electronics, an established supplier of image processing systems, and Smartek, a Croatian electronics company, announce high-end LED illumination controllers for professional applications.
Smartek’s Strobe Controller (SC) series is renowned for its switching capacity and precision for industrial machine vision applications. Latest models have Ethernet or RS232 control interfaces, with full SDK support for both Windows and Linux o/s. The family of strobe controllers features 1, 2, 4 or 6 parallel channel options, both digital and analogue light-head coding, an integrated temperature sensor and built-in power supply – all supplied in an industrial and compact anodised aluminium case.
They can deliver high power pulses of up to 8A and 200V per channel at 1µs pulse duration. Pulse duration is also widely variable from 1µs to 1000ms and with low trigger latency and very low jitter. Inline current and voltage measurements ensure the lighting is never overdriven to damaging levels.
The supplied software provides a simple interface to control and manage each output channel individually plus the triggering parameters. Triggers are rising edge 0-5V or 0-24V with either positive or negative edge.
About Framos
Headquartered near Munich, Germany, Framos GmbH has been established as an innovative and active partner in industrial image processing for the last 30 years. Together with its comprehensive portfolio of imaging components such as sensors, companion chips, camera modules, cameras, lighting and accessories, we support our customers with a real variety of development services, ranging from short-term solutions for complex demands up to large scale marketable developments of complete systems. On this basis, we find or develop solutions for the key challenges in image processing, so that our customers can focus on increasing their competitive advantage.
SOURCE: Framos Electronics Ltd.
