Light panels from Smart Vision Lights emulate diffuse, multiangle illumination

Second-generation LLP backlights and large diffuse ringlight panels from Smart Vision Lights are edge-lit and feature four-sided LED illumination for twice the intensity of the original versions.

Jul 10th, 2011
Smart Vision Lights LLP backlights
Smart Vision Lights LLP backlights

Second-generation LLP backlights and large diffuse ringlight panels are edge-lit and feature four-sided LED illumination for twice the intensity of the original versions. A clear, anodized thin-profile frame has increased rigidity and an improved mounting system. LLP-H panels are designed to emulate the diffuse, multiple-angle lighting achieved with a large dome light or tent light. The built-in driver provides NPN-PNP triggering, analog intensity control, and the ability to run in constant or strobe mode. Standard, existing sizes are available with new part numbers in order of size from smallest to largest. Custom sizes are also available up to 1200 × 1800 mm (48 × 72 in.).
Smart Vision Lights
Muskegon, MI, USA


-- Posted by Vision Systems Design

View More New Products

---
NEW PRODUCT PRESS RELEASE

2nd Generation LLPs

SVL announces a new and improved second generation of LLP back lights and large diffuse ring light panels. These edge lit, white, back lights now feature four sided LED illumination for twice the intensity of our original versions. The new clear anodized thin profile frame is more industrial than ever. This increased rigidity and improved mounting system offer an advanced rugged design. As always, 2nd Gen LLP's feature a built-in driver with NPN-PNP triggering, analog intensity control, with the ability to run the light in constant or strobe mode. Standard, existing sizes are available with new part numbers in order of size from smallest to largest. Custom sizes are also available up to 1200mm x 1800mm (48"x72").

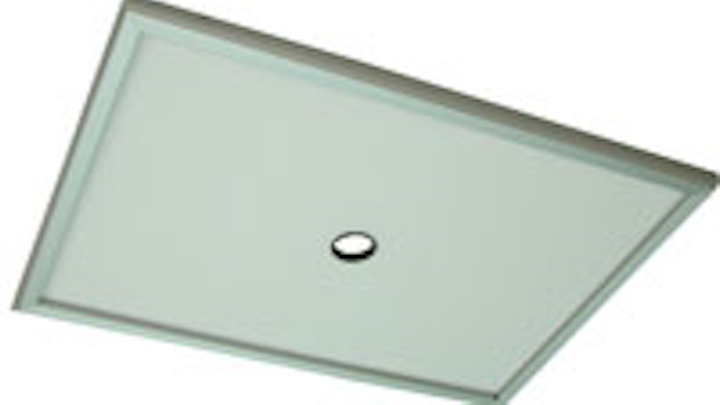

Diffuse Ring Light Panels Emulate Dome Light

The LLP-H series of edge lit light panels are designed to emulate the diffuse, multiple angle lighting achieved when using a large dome light or tent light. The advantage is that these panels are larger, brighter, and can be used at longer working distances. This is achieved through the precision laser cut hole in the center of the Large Light Panel for the camera to peer through. LLP-H series Diffuse Ring Light Panels are fully customizable. Any dimension up to 1200mm x 1800mm (48"x72") can be achieved with the option for single or multiple hole designs. All of these advantages can be obtained at a fraction of the cost compared to dome lighting.

SOURCE: Smart Vision Lights
