Sierra-Olympic releases uncooled LWIR camera

Vinden CZ 320 infrared cameras, which are offered in both 60 Hz and 9 Hz frame rates, feature a VOx uncooled microbolometer detector in 640 x 480 or 320 x 240 focal plane arrays, as well as a 17 µm x 17 µm pixel size.

Jul 22nd, 2014
Content Dam Vsd En Articles 2014 07 Sierra Olympic Releases Uncooled Lwir Camera Leftcolumn Article Thumbnailimage File

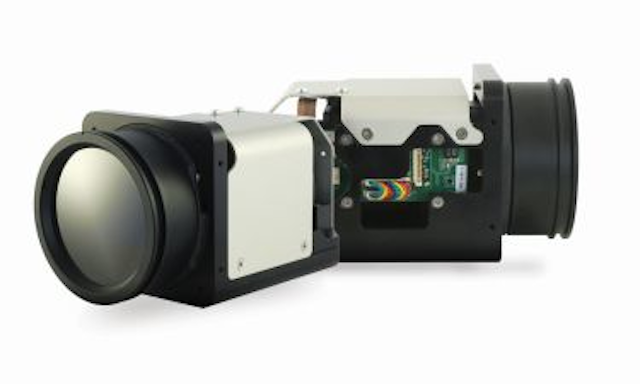

Vinden CZ 320 infrared cameras, which are offered in both 60 Hz and 9 Hz frame rates, feature a VOx uncooled microbolometer detector in 640 x 480 or 320 x 240 focal plane arrays, as well as a 17 µm x 17 µm pixel size. The LWIR cameras—which are available in monochrome and color—feature a spectral range of 8-12 μm, 3X optical zoom, 2X digital zoom, and a custom processor that provides image processing functions. In addition, the cameras generate H.264/MJPEG IP-video streams for Ethernet connectivity, as well as simultaneous NTSC/PAL analog video, and 14-bit Camera Link digital video. Vinden CZ 320 cameras are suitable for use in integrators and OEM in industrial applications, security and surveillance, and military applications.

To Learn More:

Contact:
Sierra-Olympic
Headquarters
: Hood River, OR, USA
Product:
Vinden CZ 320 LWIR cameras
Key Features:
VOx uncooled microbolometer detector in 640 x 480 or 320 x 240 focal plane arrays, 17 µm x 17 µm pixel size, 14-bit Camera Link.

What Sierra-Olympic says:
View more information on the 60 Hz model.
View more information on the 9 Hz model.
