LDDLIGHT.com provides direct LED backlights

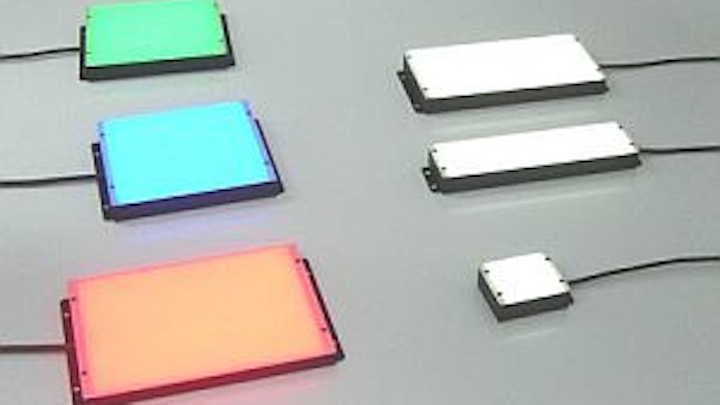

The IDHM Series Direct LED Back Lights from LDDLIGHT.com employ high output chip LEDs mounted in a dense array directly below a diffuser.
NEW PRODUCT PRESS RELEASE
The new IDHM Series Direct LED Back Lights from LDDLIGHT.com employ high output chip LEDs mounted in a dense array directly below a diffuser, resulting in highly uniform and intense light from a very thin package. With case heights ranging from 11 to 16.5 mm, IDHM backlights require a minimal amount of valuable space in a vision system installation (for applications requiring still thinner packages, see our IFL Series Indirect Back Lights). Though called “Back Lights”, IDHMs are equally effective in front lighting applications requiring diffuse illumination to minimize reflections.
IDHM models are used successfully in imaging applications to provide diffuse, uniform light suitable for silhouetting parts, viewing openings or detecting material presence/absence, thickness or density by projecting light from behind the object. Typical applications include inspection of injection molded parts for short shots, flash and voids; electrical connector pin presence/absence and pitch measurement; checking fill levels in containers at bottling plants; through-hole verification and dimensional measurements in both machining and molding operations.
A member of our Back Light Family, IDHMs are offered in 46 size and wavelength configurations. Available with illuminated area dimensions ranging from 32 to 122 millimeters, IDHM standard models are offered with red, white, blue or green LEDs. Additional wavelengths (IR and RGB) and sizes may be custom ordered.
For part numbers and pricing, see the IDHM model web page at LDDLight.com, or enter “IDHM” into the site’s search box.
-- Posted by Vision Systems Design
