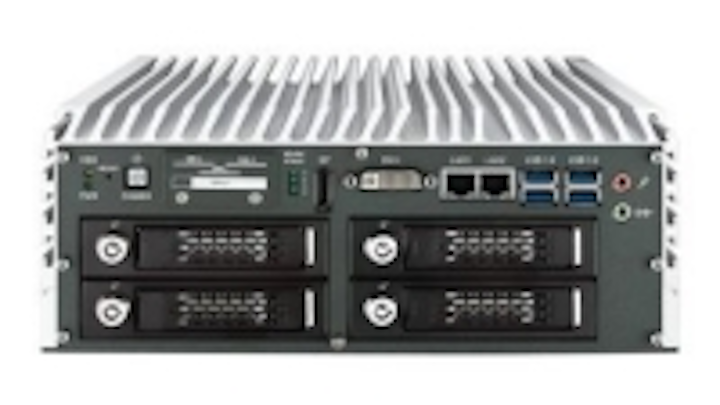

Powered by Quad Core Intel Core i7/i5/i3 processors, the IVH-7700 Series of fanless embedded systems target such applications as in-vehicle surveillance, traffic safety, intelligent transportation, mobile NVR, and intelligent surveillance applications. The systems feature DDR3 or DDR3L dual channel up to 16GB memory and an Intel HD4000 graphics engine supporting onboard DVI-D, DisplayPort, and dual channel 24-bit LVDS display interface. The embedded systems also feature four front-access 2.5" HDD/SDD trays, up to 16TB storage capacity, 6 GigE connections (4 IEEE 802.3at PoE+ compliant), optional M12 connections for PoE+/ power input, 4 mini PCIe slots, 4 SIM card sockets (3 front-access, 1 internal), 8 USB 3.0 with 4 external independent USB 3.0, 6V to 78V wide range power input with up to 200V secure surge protection, and 16 Isolated DIO for circuit protection.
To Learn More:
Headquarters: New Taipei City, Taiwan
Product: IVH-7700 Series of fanless embedded systems
Key Features: Quad Core Intel Core i7/ i5/ i3 processors, 6 GigE LAN with 4 PoE+, 4 Mini PCIe slots, 4 external independent USB 3.0 ports.
Share new products that you think are particularly interesting or helpful by contacting James Carroll, Senior Web Editor, Vision Systems Design.
