Auto focus lens module targets microscopy applications

Designed specifically for microscopy applications, the Caspian u-316-7.5 auto focus lens module features the Arctic 316 variable focus liquid lens and magnficiation from X2 to X5.

Jun 5th, 2015
Content Dam Vsd En Articles 2015 06 Auto Focus Lens Module Targets Microscopy Applications Leftcolumn Article Thumbnailimage File

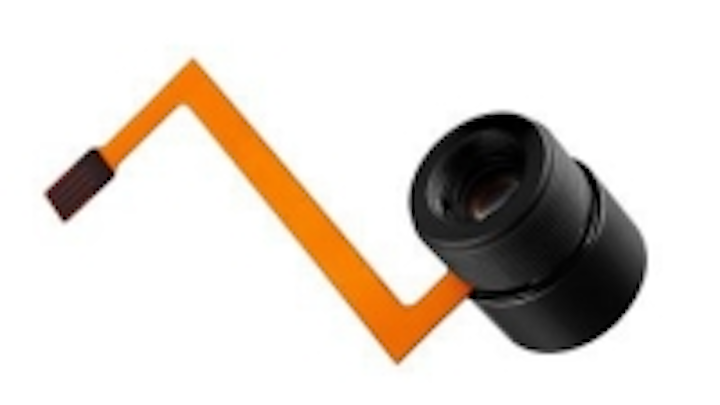

Designed specifically for microscopy applications, the Caspian u-316-7.5 auto focus lens module features the Arctic 316 variable focus liquid lens. The lens module features a magnification from X2 to X5, a typical focus range of up to 1.7 mm, and a working distance of 5 to 7 mm. The module also features a built-in FPC cable and can be connected to a standard 1 mm pitching FPC connector. Combined with the use of specific extension rings (either for C-Mount or M12), an inexpensive autofocus microscope can be built. A Caspian microscopy development kit is now available, including X2, X3, and X5 extension rings, power supply, and an autofocus microscope module.

To Learn More:

Contact:Varioptic
Headquarters: Lyon, France
Product: Caspian u-316-7.5 auto focus lens module
Key Features: Arctic 316 variable focus liquid lens, magnification from X2 to X5, focus range of 1.7mm, working distance of 5 to 7 mm.

What Varioptic says:
View more information on the Caspian u-316-7.5.
