Infrared camera from FLIR is designed for research and development applications

Designed to function as a standalone data collection and analysis system in the field, or as a fixed-mount thermal measurement solution in the lab, the FLIR T1030sc longwave infrared camera specifically targets research and development applications.

Dec 2nd, 2015
Content Dam Vsd En Articles 2015 12 Infrared Camera From Flir Is Designed For Research And Development Applications Leftcolumn Article Thumbnailimage File

Designed to function as a standalone data collection and analysis system in the field, or as a fixed-mount thermal measurement solution in the lab, the FLIR T1030sc longwaveinfrared camera specifically targets research and development applications. The camera features a 1024 x 768 uncooled microbolometer infrared detector that features a 17 µm detector pitch, a spectral range of 7.5 to 14 µm, and can achieve frame rates of 30 fps in full window, 120 fps in full window with high-speed interface (HSI) to computer, 240 fps in half-window with HSI, and 480 fps in quarter-window with HSI. Additionally, the 14-bit camera is equipped with FLIR’s new OSXTM precision HDIR optics and ResearchIR Max software, which provides researchers and scientists with a tool for viewing, acquiring, analyzing, and sharing thermal data.

To Learn More:

Contact:FLIR
Headquarters: Wilsonville, OR, USA
Product:

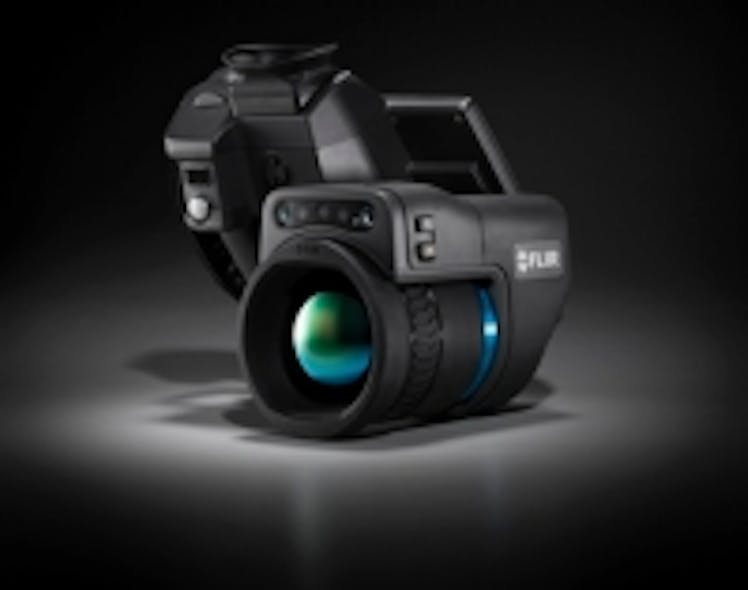

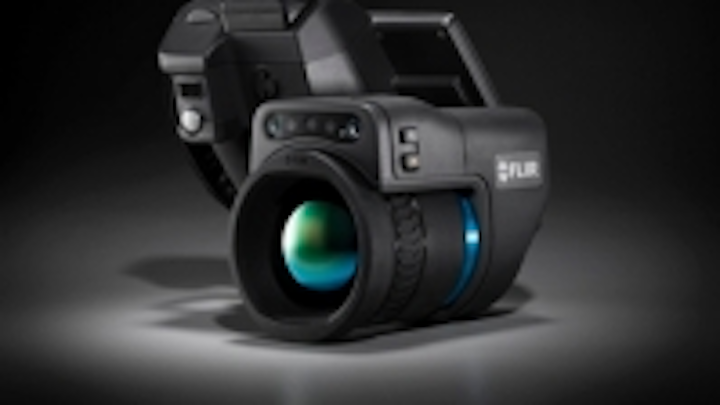

FLIR T1030sc infrared camera
Key Features: 1024 x 768 uncooled microbolometer infrared detector, 17 µm detector pitch, spectral range of 7.5 to 14 µm, fps up to 480 fps in reduced view with high-speed interface.

What FLIR says:
View more information on the FLIR T1030sc.
