• Flat top staging for upright microscopes

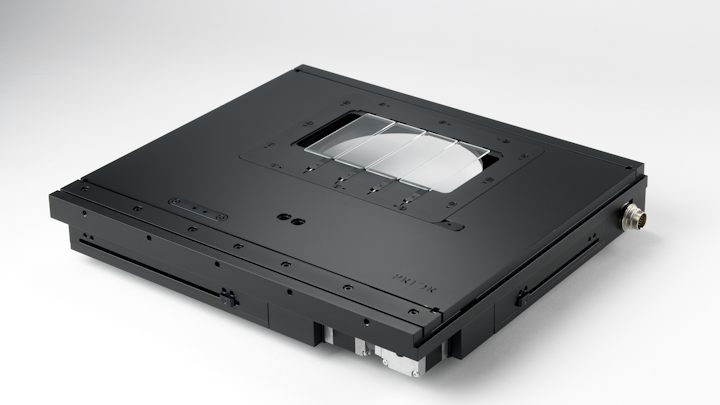

    A motorized microscope stage for upright microscopes incorporates a flat top plate design that eliminates any obstacles created by objective/nosepiece rotation.
    June 3, 2013

    A motorized microscope stage for upright microscopes incorporates a flat top plate design that eliminates any obstacles created by objective/nosepiece rotation. Low-profile sample holders facilitate the use of high NA objectives/condensers while miniature motors facilitate access to the condenser. The H101F model from Prior Scientific also has optional embedded X and Y axis encoders that provide closed loop control. With Intelligent Scanning Technology, the H101F allows each stage to be pre-programmed with a unique set of operating characteristics and also allows the H101F stage controller to make any required adjustments.

    To learn more:

    Contact:Prior Scientific
    Headquarters
    : Rockland, Mass., United States
    Product:
    H101F ProScan™ Flat Top Upright Microscope Stage
    Key Features:
    Thin flat top design, low profile sample holders, larger sample holder design area (176mm x 154mm), easy access to condenser, optional XY encoders.

    What Prior Scientific says:

    View more information on the H101F staging.
