Z-axis piezo stage enabled for microscopy applications

Piezosystem Jena’s PZ 300 piezoelectric actuator based z-axis elevator stage is designed specifically for adapting onto the top of standard XY microscopy stages.

Jun 19th, 2013

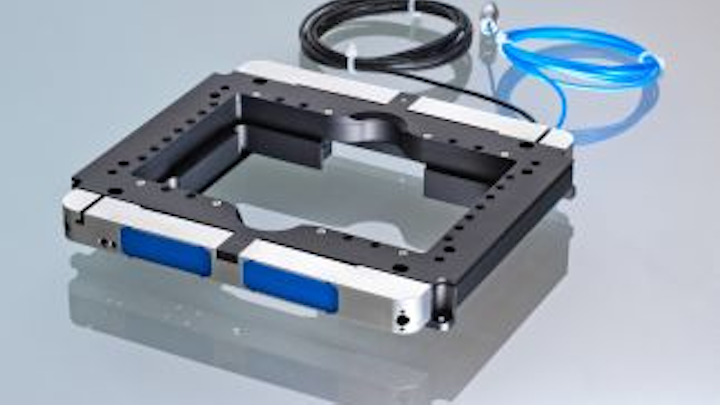

Content Dam Vsd Online Articles 2013 06 Pz 300ap   Copy

Piezosystem Jena’s PZ 300 piezoelectric actuator based z-axis elevator stage is designed specifically for adapting onto the top of standard XY microscopy stages. The PZ 300 AP piezo stage offers a travel range of up to 300 microns with a step resolution of of ±2.5 nanometers. It features two parallel working piezo drives and a large free aperture, which enables the stage to work with standard slides, Multi-well plates, and petri dishes. In addition, the piezo stage from Piezosystem Jena can scan step-by-step at working frequencies up to 50 Hz.

To learn more:

Contact: Piezosystem Jena
Headquarters: Jena, Germany
Product: PZ 300
Key Features:Travel range of 300 microns, high resolution direct measuring metrology, fits a standard Frame K opening, free aperture supports standard Multi-well size.

What Piezosystem Jena says:

View more information on the PZ 300.
