3D printed cast created using Microsoft Kinect

The "Cortex" is a lightweight, washable, and ventilated cast that a recent graduate from the School of Design at Victoria University of Wellington has developed using a hacked Microsoft Kinect and a 3D printer.

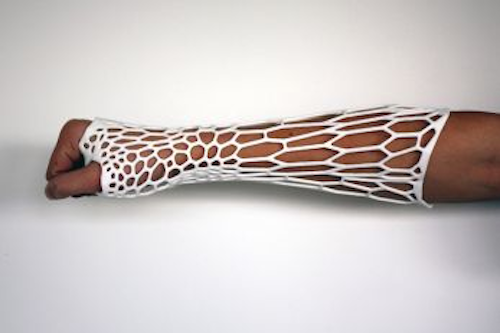

Content Dam Vsd Online Articles 2013 07 Cast1 Copy

A recent graduate of the School of Design at Victoria University of Wellington has developed a 3D printed cast by taking a 3D scan of an injured limb with a hacked Microsoft Kinect.

The cast, called “The Cortex” is a lightweight, washable, and ventilated cast that would replace the older, heavier, and less comfortable casts that are currently used. Jake Evill began the project by researching the structure of a bone he had recently broken in his hand, according to Wired News. He found the trabecular, the tiny honeycomb structure that forms the inner tissue of a bone, to be inspirational and he ended up modeling the Cortex after this pattern, which he says embodies the quality of being strong whilst light just like the bone it is protecting within.

Evill then used a hacked Microsoft Kinect to perform a 3D scan of his injured hand. From there, the image created by the scanner was sent to Shapeways in the Netherlands and printed in 3D in nylon plastic, which will be 3 mm thick and under 500g – a lot smaller than existing plaster casts. In addition, the Cortex allows the skin under the cast area to breathe.

The Cortex printed cast is still very much in the development stage, according to Evill, who says that a more traditional 3D scanner and not a hacked Kinect would probably be beneficial. Evil is currently looking for partners to make the project become a reality.

View the Wired News article.
