Sierra-Olympic releases uncooled LWIR chassis camera

Vinden CZ 640 infrared cameras, which are offered in both 30 Hz and 9 Hz models, feature VOx uncooled microbolometer detectors in 640 x 480 or 320 x 240 focal plane arrays, as well as a 17 µm x 17 µm pixel size.

Content Dam Vsd En Articles 2014 09 Sierra Olympic Releases Uncooled Lwir Chassis Camera Leftcolumn Article Thumbnailimage File

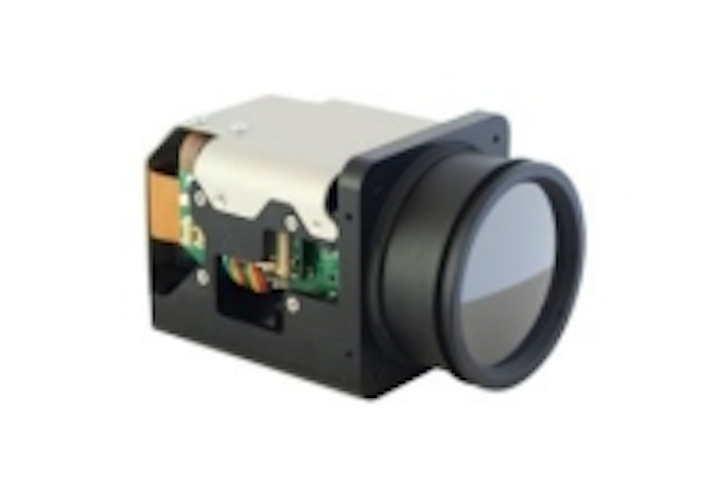

Vinden CZ 640 infrared cameras, which are offered in both 30 Hz and 9 Hz models, feature VOx uncooled microbolometer detectors in 640 x 480 or 320 x 240 focal plane arrays, as well as a 17 µm x 17 µm pixel size. The Vinden CZ 640, which is the second model in the series of uncooled, continuous-zoom thermal chassis cameras, delivers H.264/MJPEG IP-video for Ethernet connectivity and simultaneous Camera Link digital and analog NTSC/PAL video. The LWIR cameras feature a spectral range of 8-12 μm, 3X optical zoom, 4X digital zoom, a horizontal field of view from 17.1° to 1.5°, and a custom processor that provides image processing and noise-reduction functions. Vinden CZ 640 cameras are suitable for use in integrators and OEMs in industrial applications, security and surveillance, and military applications.

To Learn More:

Contact:
Sierra-Olympic
Headquarters
: Hood River, OR, USA
Product:
Vinden CZ 640 LWIR cameras
Key Features:
VOx uncooled microbolometer detector in 640 x 480 or 320 x 240 focal plane arrays, 17 µm x 17 µm pixel size, spectral range of 8-12 μm.

What Sierra-Olympic says:
View more information on Vinden CZ cameras.
