System inspects space-shuttle tiles

To ensure safe re-entry, an infrared-based scanning system creates 3-D images and maps of thermal shields.

Mar 1st, 2006
Th 0603vsd Feature03 01

To ensure safe re-entry, an infrared-based scanning system creates 3-D images and maps of thermal shields.

By Stéphane Gagnon

The Neptec Design Group designed and built a laser camera system (LCS) to assist NASA in determining damage incurred to the space shuttle’s thermal-protection tiles during the Discovery’s ‘Return to Flight’ STS-114 mission in August 2005. The system showed that there was no threat to the crew on re-entry. Areas of interest located on the shuttle’s tiles were first identified from video cameras collocated with Neptec’s LCS, as well as from high-definition digital pictures taken from the International Space Station. The areas were then scanned by the LCS to determine the amount of damage, if any, that occurred.

The LCS visually depicts and provides quantitative data to give a detailed analysis of anomalies that appear on an area of interest. Damage was determined by downlinking scanned data from the shuttle to the Mission Control Center at Johnson Space Center in Texas and analyzing the data for the presence of anomalies.

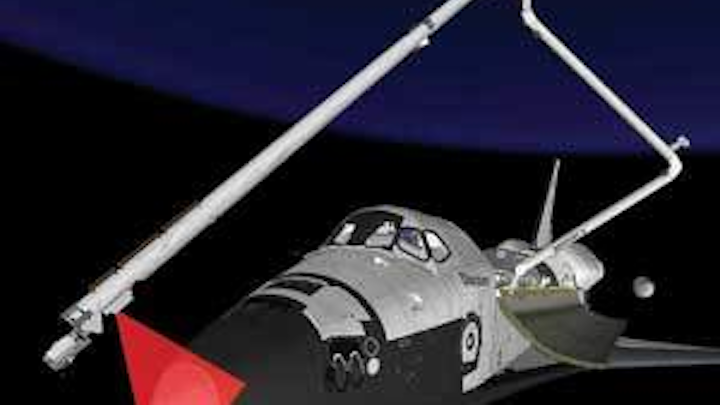

FIGURE 1. The Neptec LCS uses a triangulation method to create 3-D images of the Shuttle Thermal Protection System. The LCS is one of the sensors that comprise the Orbiter Boom Sensor System, a 50-ft-long arm extension to the 50-ft Remote Manipulator System that positions the inspection sensors in hard-to-reach locations.
Click here to enlarge image

Mounted on an orbital replaceable mounting plate at the free end of the orbiter’s boom sensor system, the LCS examines damage-sensitive reinforced carbon-carbon leading-edge panels along the wings and nose and on the thermal-protection system on the shuttle’s underbelly (see Fig. 1). The LCS 3-D imaging and contour-mapping capability is also used as a confirmation and measurement tool when an area of interest is identified. Based on an autosynchronous scanning principle developed by the National Research Council of Canada, the camera system’s design provides submillimeter-precision 3-D measurement over a 30º × 30º field of view and can be operated up to 10 m away from the target object.

Triangulation methods

In basic triangulation methods, a beam is projected from one location and received at another. The distance between the emitter and detector and the beam angle determine the range to the target object. In an autosynchronous design, the separate projection and reception optics are “folded” into one single unit (see Fig. 2).


FIGURE 2. In autosynchronous scanning, an emitted laser beam reflects from the front surface of a double-sided mirror (1), bounces off a fixed mirror (2), reflects off the object (3), and is collected at another side mirror (4). From there, the beam is reflected from the back of a double-sided mirror (5) and directed onto a light-sensitive detector array (6). As the range of the object changes (from A to B), the angle of the collected ray changes, causing the position of the beam to change on the detector. Thus, the position of the laser beam on the detector is directly related to the range to the object. Scanning in one dimension is achieved by rotating the double-sided mirror with a scanning galvanometer. To sweep out a pattern in two axes, a second scanning mirror is placed after the side-mirror (2).
Click here to enlarge image

The LCS generates 3-D voxels by simultaneously sampling the angular position of the galvanometers and measuring the peak location and intensity on a SU256LX-1.7RT 256 × 1-pixel linear detector array from Sensors Unlimited. The indium gallium arsenide-based detector has selectable gain settings with a peak sensitivity around 1500 nm. The combined measurements of angles and laser peak position can be transformed into x, y, and z and intensity for every sampled location.

Regardless of lighting conditions, the camera system renders 3-D images that can be zoomed and tilted to reveal tiny defects. The system’s insensitivity to lighting conditions is crucial in space, where large contrasts between shaded and sun-exposed areas exist. Because of this, the laser wavelength used in the design was fixed at 1500 nm, a wavelength of relatively low intensity within the solar spectrum. Additionally, a narrow bandpass filter from CVI Laser Optics is located in front of the detector to filter solar background energy.

Operating Environment

The on-orbit environment is harsh and creates daunting technical design challenges. Temperatures can vary by as much as 80°C between sunrise and sunset during a 90-min diurnal cycle. The LCS must be able to operate within an environment as cold as −110°C and as warm as 25°C.

To do this, reflecting material was installed in the system enclosure’s external walls. This limits the temperature variation caused by sunlight. Radiators were mounted on the enclosure to allow the heat produced by the electronics to radiate out of the enclosure. Based on thermal analysis by Neptec scientists, Minco thermofoil heaters and thermostat were selected for use in the system. This same thermal analysis also determined the required radiated surface area to maintain the LCS components within their respective operating temperatures.

The camera system’s optical path requires precise alignment, and this must be preserved as the temperature changes. The optical subassemblies must sustain random vibrations that are inherent with the million pounds of lift-off thrust and turbulence during re-entry. To counteract the vibrations, the optical subassemblies are mounted on a plate composed of a rigid carbon laminate from ATK Space Systems, with a near-zero coefficient of thermal expansion. Selected for their strength and materials, the optical components are matched to provide thermal stability throughout the optical assembly.

The LCS is operated within low Earth orbit and is partially protected from radiation by the Van Allen belt, enabling the camera to be built with a mix of industrial-, military-, and space-grade components. Electronic components and circuit-card assemblies were tested at the Indiana University Cyclotron Facility to determine system tolerance to radiation. This made it possible to use some commercially available technology, while maintaining the robustness and integrity of the system.

Electronic control

Camera electronics comprised a power supply, a processor card, and a laser galvanometer controller card that contains a 1500-nm continuous-wave laser from Fitel and galvanometer control electronics. The laser galvanometer card interfaces with the processor card via programmable logic that monitors the operation of both the laser source and M2ST galvanometers from GSI Lumonics. There have been minor modifications made to the laser to meet aerospace requirements. The processor card also sets the laser-beam intensity and the galvanometer positions and samples the mirror angles. Galvanometer positions are accurately controlled by analog servo controllers that are adjusted for specific mirror inertia and galvanometer characteristics.

The processor card performs camera scan control, processes raw data into 3-D voxel format, runs diagnostics, and interfaces to a laptop computer located in the shuttle’s crew cabin. The camera system uses an embedded PowerPC running the Neutrino operating system from QNX. Two radiation hardened DSPs from Texas Instruments control the galvanometer positions and process data from the linear detector. A Xilinx Virtex2 Pro FPGA provides an interface to the three on-board processors, the detector, the laser and galvanometer controller card, and an Ethernet switch. The FPGA processes the raw data from the linear detector array.

As the photosensitive array generates data based on the returned light-intensity peaks associated with the scanned object, the FPGA extracts peak locations and transfers the data to one of the DSPs for further processing. Range information is then merged with the associated mirror angles and, once a scan line is complete, the data are transferred to the laptop via a KS8995MA Ethernet link from Micrel.

Astronauts must position the shuttle robotic arm and extension boom so that the LCS is facing the area of interest prior to performing a scan. Ground engineers provide a sequence of remote manipulator-system joint-angle commands to ensure that the arm and boom do not collide with the shuttle. Once the camera is positioned, an astronaut enters the scan parameters and initiates the scan using a laptop computer. After the scan is performed, the astronaut can assess scan quality and repeat the scan with different parameters, if required.

Displaying data

Once a scan has been completed, data are downlinked to the Mission Control Center at the Johnson Space Center. The scan is then analyzed for the presence of anomalies with the LCS analysis tool (LAT) developed by Neptec.

Using a camera-dependent calibration file, scan file voxels are converted from a spherical to an x, y, and z coordinate system. Data are then processed to detect and characterize the shuttle’s thermal protection system. Using the LAT, engineers can view data in 2- or 3-D, filter the data to reduce inherent measurement noise, and adjust image brightness and contrast. For anomaly characterization, the LAT allows operators to take on-screen measurements and provide graphical tools for data visualization (see Fig. 3).


FIGURE 3. LCS Analysis Tool session screen capture shows tile damage near the shuttle’s nose landing gear door from an on-orbit scan. The two top windows depict a 2-D image and a 3-D point-cloud view of the damage. The bottom-right window shows a false-color depth plot from a surface fit of the region of interest as selected by the blue box. The image is color-coded such that deeper damage is red. The last window shows z values in inches traced across the path selected by the green line. Based on analysis of the data, NASA concluded that this area did not represent a threat to the shuttle on re-entry.
Click here to enlarge image

By exporting the data to standard 3-D point-cloud file formats, information may be further analyzed using other third-party products, such as those from InnovMetric Software, to make volumetric measurements. Once the damage is characterized, the information is provided to NASA engineers and used in thermal-analysis software to determine if the damage poses any threat during shuttle re-entry.

The STS-114 mission proved the robustness, reliability, and integrity of the LCS technology, not only in the harsh low-Earth-orbit environment, but in its ability to visually comprehend any threat from damage incurred to the shuttle’s thermal protection system.

Stéphane Gagnon is systems and electrical engineer at Neptec Design Group (Ottawa, ON, Canada; www.neptec.com).
