Aerial cameras from Phase One Industrial offer 100 and 150 MPixel resolution for aerial mapping

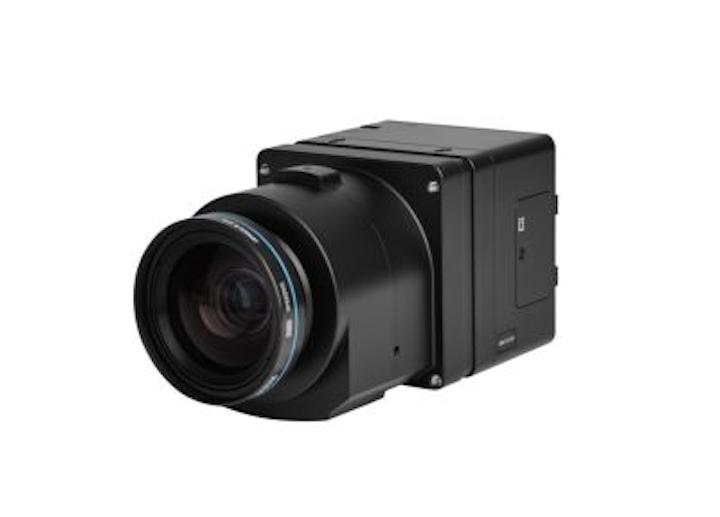

Designed for high-resolution aerial mapping and surveying applications, the flagship iXM-RS150F camera from Phase One Industrial is based on a 150 MPixel backside illuminated CMOS image sensor with a 3.76 µm pixel size that captures images at 2 fps.

Content Dam Vsd En Articles 2018 09 Aerial Cameras From Phase One Industrial Offer 100 And 150 Mpixel Resolution For Aerial Mapping Leftcolumn Article Headerimage File

Designed for high-resolution aerial mapping and surveying applications, the flagship iXM-RS150F camerafrom Phase One Industrial is based on a 150 MPixel backside illuminated CMOS image sensor with a 3.76 µm pixel size that captures images at 2 fps. The camera is available in both RGB and achromatic models and features a dynamic range of 83 dB, and USB 3.0 and Ethernet 10G interfaces

Additionally, Phase One Industrial introduced the iXM-RS100F, which features a 100 MPixel backside illuminated CMOS image sensor with a 4.6 µm pixel size that captures images at 1.6 fps. This camera is also available in both RGB and achromatic models and features a dynamic range of 84 dB and the same interfaces as the iXM-RS150F. Both models feature Phase One Industrial’s RS lens series with seven field-replaceable focal length options, ranging from 32 mm to 150 mm. Designed and built for aerial photography by Rodenstock and Schneider Kreuznach, these lenses are factory calibrated for infinity focus and each is equipped with a central 1/2500 sec. leaf shutter.

To Learn More:

Contact:
Phase One Industrial
Headquarters
: Copenhagen, Denmark
Product: iXM-RS150F and iXM-RS100F aerial cameras
Key Features:
150 and 100 MPixel backside illuminated CMOS image sensors, Phase One RS lenses, USB 3.0 and Ethernet 10G interfaces.

What Phase One says:
View more information on the cameras.
