Embedded system from Lanner offers expansion and I/O options

Built on the Intel 4th generation Core i7/i5/i3 processors and an Intel QM87 chipset, the LEC-2281 from Lanner targets machine vision, security, and digital signage applications.

Nov 4th, 2015
Content Dam Vsd Online Articles 2015 November Lanner   Copy

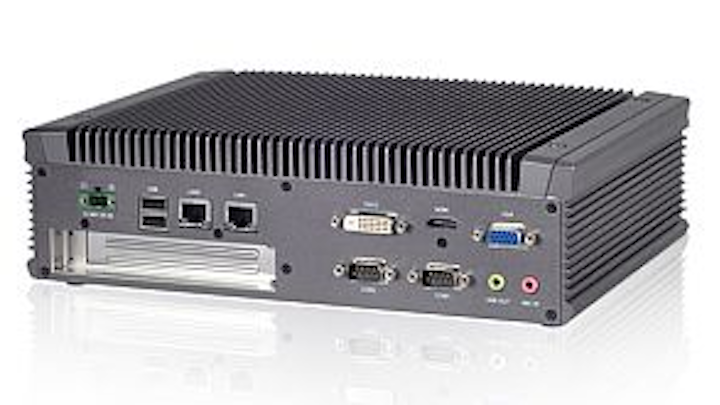

Built on the Intel 4th generation Core i7/i5/i3 processors and an Intel QM87 chipset, the LEC-2281 from Lanner targets machine vision, security, and digital signage applications. The embedded system features 16GB DDR3L SODIMM memory, dual COM ports, dual serial ports, dual USB 3.0 ports, 4 USB 2.0 ports and various mounting options, as well as an Intel HD Graphics 4600 graphics controller. Its HDMI, VGA and DVI-D interface supports resolution up to 3840 x 2160 at 24Hz (or 2560 x 1600 at 60Hz), 1920 x 1080 and 1920 x 1200, respectively. In terms of storage and expansion, the LEC-2281 offers dual 2.5" HDD/SSD drive bays and one mSATA socket, with expansion made possible via the included PCI, PCI Express x16 and the full-sized mini-PCIe socket with SIM card reader.

To Learn More:

Contact:Lanner
Headquarters
: New Taipei City, Taiwan
Product:
LEC-2281 embedded system
Key Features:
Intel 4th generation Core i7/i5/i3 processors , 16GB DDR3L SODIMM memory, dual COM ports, dual serial ports, dual USB 3.0 ports, 4 USB 2.0 ports.

What Lanner says:
View more information on the LEC-2281.
