Page 2: Algorithms provide more accurate citrus crop yield estimate

A University of Florida study used a number of imaging algorithms to find immature citrus in images captured under different light conditions and fruit hidden by leaves and branches in order to identify immature fruit and provide a more accurate estimate for citrus crop yields.

Jan 28th, 2014
Content Dam Vsd En Articles 2014 01 Page 2 Algorithms Provide More Accurate Citrus Crop Yield Estimate Leftcolumn Article Thumbnailimage File

Validation images were classified into two categories based on a predetermined brightness using a color histogram. CHT was initially run on the validation images to detect spherical objects, and a maximum squared patch was taken from the inside of each circle. After dividing the image into 20 x 20 smaller patches, the SVM classifier was run to classify each of them, and it was determined if the image was fruit or leaf.

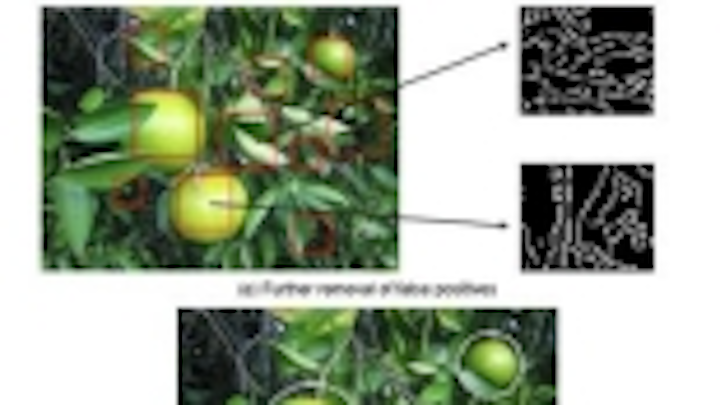

A false positive algorithm was then run, and based on majority vote, false positive fruit were removed. In the secondary method of false positive detection, a SIFT keypoint detection algorithm was run on each larger patch, and the number of keypoints was counted on each larger patch. Since the surface of a citrus fruit is relatively smooth, it would have a smaller number of corners, thus, the number of detected keypoints would be lesser for the fruit surface compared to the leaf surface.

Using the photos of the fruit and the CHT, texture classification with a support vector machine, and keypoints by scale invariant feature transform algorithms, Lee and his team found 80% of immature fruit in the research grove on the Gainesville, Florida campus. Major challenges identified in the study were uneven illumination, partial occlusion, and color similarity. Despite an 80% success rate, the number of false positives identified raised an issue, so further research is necessary to increase the accuracy of the identification process.

View the University of Florida press release.
View the research paper.
